AirTac's Mini Cylinders

Mini Pneumatic Cylinders are compact, lightweight, and highly efficient devices used in a wide range of industries for precise motion control. ISO6432 standard cylinder with front and back cover own fixed bumper pad which can reduce the impact of direction change. Piston and cylinder body with material of stainless steel make cylinder adapt general working environment.

Mini actuator

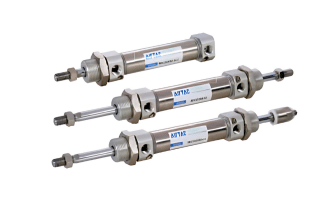

MI Series

Rolling packed structure, multi-type cylinder and strokes


Port Sizes: 8,10,12,16,
20,25,32,40
Acting Type: Double,single-push
single pull
Operating Pressure: 0.15~1.0MPa
Double acting: (22~145psi)
Operating Pressure: 0.2~1.0MPa
Single acting: (24~145psi)
Proof pressure: 1.5MPa(215psi)
Temperature: -20~70°C
Speed range: 30~800 mm/s
Max. stroke length: 800mm
Tolerance: >1.5 mm
Standard actuator

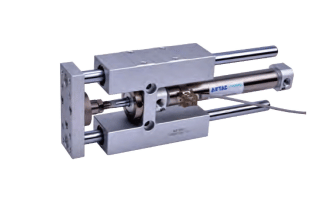

TMI/TMIC Series

A cylinder combined with guide frame and MI series mini cylider


Port Sizes: 12,16,20,25
Acting Type: Double,single-push
single pull
Operating Pressure: 0.15~1.0MPa
(22~145psi)
Proof pressure: 1.5MPa(215psi)
Temperature: -20~70°C
Speed range: 30~800 mm/s
Max. stroke length: 250mm
Tolerance: >1.5 mm
Pen size cylinder

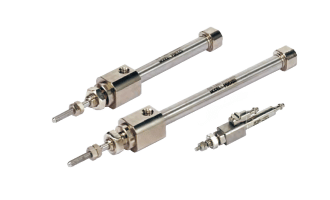

PB(Pen size cylinder)Series

JIS standard is implemented


Port Sizes: 4,6,10,12,16
Acting Type: Double,single-push
single pull
Operating Pressure: 0.2~0.7MPa
Double acting (22~100psi)
Operating Pressure: 0.2~0.7MPa
Single acting (28~100psi)
Proof pressure: 1.2MPa(175psi)
Temperature: -20~70°C
Speed range: 50~800 mm/s
Max. stroke length: 300mm
Tolerance: >1.5 mm
pen size actuator

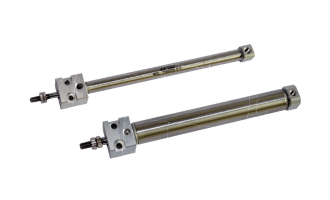

PBR (Pen Size cylinder) Series

Mini cylinder that has compact structure, small volume and light weight


Port Sizes: 4,6,10,12,16
Acting Type: Double, single
Operating Pressure: 0.15~0.7MPa
Double acting (22~100psi)
Operating Pressure: 0.2~0.7MPa
Single acting (28~100psi)
Proof pressure: 1.2MPa(175psi)
Temperature: -20~70°C
Speed range: 50~800 mm/s
Max. stroke length: 300mm
Tolerance: >1.5 mm
Mini Cylinder

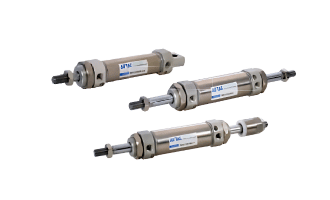

MF Series

Piston adopts heterogeneous two way seal structure


Port Sizes: 20,25,32,40
Acting Type: Double, single
Operating Pressure: 0.15~1.0MPa
Double Acting (22~145psi)
Operating Pressure: 0.15~1.0MPa
Single acting (28~145psi)
Proof pressure: 1.5MPa(175psi)
Temperature: -20~70°C
Speed range: 30~800 mm/s
Max.stroke length: 800mm
Tolerance: >1.5 mm
Tiny actuator

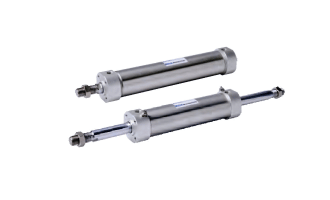

MG Series

Cylinder body has stainless steel pipes with high precision


Port Sizes: 20,25,32,40,50,63
Acting Type: Double
Operating Pressure: 0.15~1.0MPa
(22~145psi)
Proof pressure: 1.5MPa(175psi)
Temperature: -20~70°C
Speed range: 30~500 mm/s
Max.stroke length: 800mm
Tolerance: >1.5 mm
Tie rod type cylinder

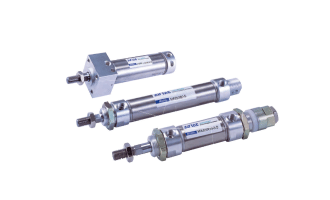

MA Series

Several modes of back cover to ease the installation of cylinder


Port Sizes: 16,20,25,32,40,50,63
Acting Type: Double
Operating Pressure: 0.15~1.0MPa
(22~145psi)
Proof pressure: 1.5MPa(175psi)
Temperature: -20~70°C
Speed range: 30~800 mm/s
Max. stroke length: 800mm
Tolerance: >1.5 mm
standard cylinder valve type

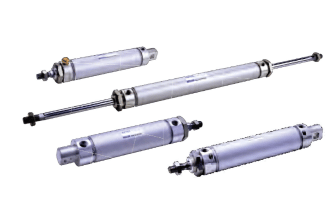

MBL(Aluminium Barrel)Series

Riveted structure is adopted to connect front, back cover and cylinder tube


Port Sizes: 16, 20,25,32,40,50,63
Acting Type: Double
Operating Pressure: 0.15~1.0MPa
(22~145psi)
Proof pressure: 1.5MPa(1755psi)
Temperature: -20~70°C
Speed range: 30~800 mm/s
Max. stroke length: 800mm
Tolerance: >1.5 mm
