AirTac's Clamp Cylinders

Pneumatic clamp cylinders are specialized air-powered actuators designed to provide secure, precise, and repeatable clamping in industrial automation. They play a crucial role in holding, positioning, and securing workpieces in various applications, including machining, welding, assembly, and material handling systems.

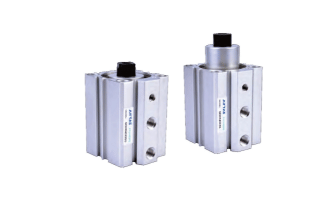

horizontal Rotary clamp cylinder

QDK Series

Horizontal Rotary Clamp Cylinder


Port Sizes: 20,25,32,40
Acting Type: Double
Operating Pressure: 0.15~1.0MPa
(22~145psi)
Proof pressure: 1.5MPa(220psi)
Temperature: -20~70°C
Repeatability: ±2°
Rotation Angle: 90°
Direction: Turn Left or Right
Clamping Stroke: 5mm

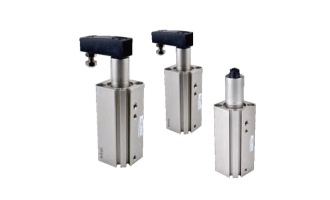

Rotary clamp cylinder

QCK Series (Rotary Clamp cylinder)

Dust proof and welding slag out design


Port Sizes: 12,16,20,25,32,40,50,63
Acting Type: Double
Operating 0.15~1.0MPa
Pressure: (22~145psi)
Proof Pressure: 1.5MPa(215psi)
Temperature: -20~70°C
Repeatability: ±2°
Speed range: 50~200 mm/s
Rotation Angle: 90°
Direction: Turn Left or Right

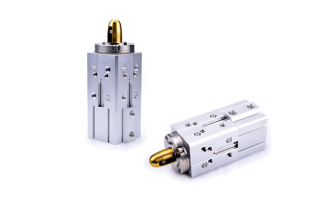

pin clamp cylinder

AQK Series(Pin Clamp Cylinder)

Titanium alloy, JIS Standard adopted


Port Sizes: 50
Acting Type: Double
Operating Pressure: 0.2~0.7MPa
Double Acting: (22~145psi)
Proof pressure: 1.5MPa(175psi)
Temperature: -20~70°C
Cushion Type: Bumper
Clamp Stroke: 10~12mm

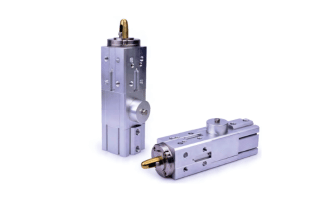

pin clamp lock type

BAQK(Pin clamp with lock type)

With sensor groove around cylinder body, easy to mount sensor


Port Sizes: 50
Acting Type: Double
Pressure 0.15~1.0MPa
Double acting: (22~145psi)
Proof pressure: 1.5MPa(215psi)
Unlock pressure: 0.3~0.7MPa(45~100psi)
Temperature: -20~70°C
Cushion Type: Bumper
Clamp Stroke: 10~12mm
Static retention: 1400N

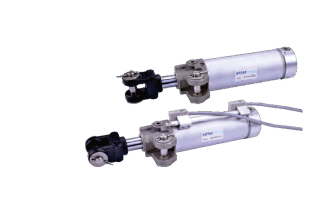

clamping cylinder

MCK(Clamping cylinder)

Suits for workshops that make automation welding


Port Sizes: 40,50,63,80
Acting Type: Double
Operating Pressure 0.15~1.0MPa
Double acting: (22~145psi)
Proof pressure: 1.5MPa(215psi)
Temperature: -20~70°C
Repeatability: ±0.01 mm
Speed Range: 50~500 mm/s

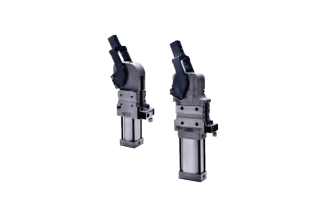

standard cylinder

JSCK(Standard Type)

Rod clank-slider structure, Fixed opening angle


Model: JSCK40,50,63,80
Output torque: 120,160,380,800 Nm resp.
Acting Type: Double
Operating: 0.3~0.8MPa
Pressure: (43~116psi)
Temperature: -20~70°C
Proof pressure: 1.2MPa(175psi)
Weight: 2,3.7,5,12 Kg.resp.

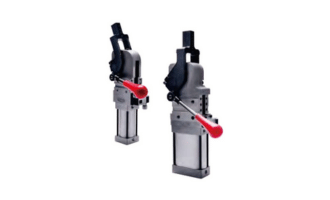

manual clamp

JSCK(Manual Type)

Oval shaped cylinder which is space efficient


Model: JSCK40, 50, 63
Acting Type: Double
Operating Pressure: 0.3~0.8MPa
(43~116psi)
Temperature: -20~70°C
Proof Pressure: 1.2MPa(175psi)
Output torque: 120,160,380 Nm resp.
Weight: 2.4, 4.2, 5.5 Kg. resp.

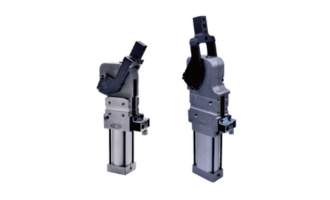

power clamp cylinder

JSK(Power Clamp Cylinder)


Model: JSCK40, 50, 63, 80
Acting Type: Double
Pressure: 0.3~0.8MPa
Double acting: (43~116psi)
Temperature: -20~70°C
Proof Pressure: 1.2MPa(175psi)
Output torque: 120,160,380,800 Nm resp.
Opening Angle: 5° ~ 135°
Weight: 2, 3.7,5,11.5 Kg.resp.
