AirTac's Rodless Magnetic Cylinders

A rodless magnetic actuator is a type of rodless cylinder that uses magnetic coupling to transfer motion from an internal piston to an external carriage without a physical connection.

rodless cylinder

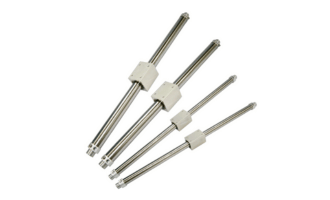

RMS Series

Featuring a mobile piston fitted with annular magnets


Port Sizes: 10,16,20,25,32
Acting Type: Double
Operating Pressure: 0.15~0.7MPa
(22~100psi)
Proof pressure: 1.2MPa(175psi)
Temperature: -20~70°C
Speed range: 50~400 mm/s
Max. stroke length: 3000mm
Tolerance: >2.0 mm
magnetic couplings

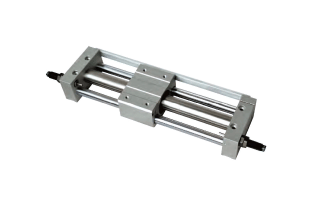

RMT Series (Guided rodless Magnetic Coupled cylinder)

The mobile carriage is equipped with magnets to provide magnetic coupling


Port Sizes: 16,20,25,32,40
Acting Type: Double
Operating Pressure: 0.25~0.7MPa
(30~100psi)
Proof pressure: 1.2MPa(175psi)
Temperature: -20~70°C
Speed range: 50~400 mm/s
Max. stroke length: 1500mm
Tolerance: >2.0 mm
rodless actuator

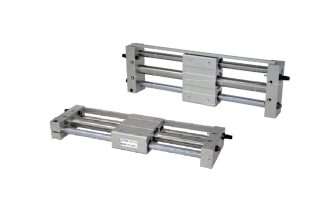

RMTL Series(Magnetic coupled/Ball Bearing)

Double guides ensure high precision and can endure proper side load


Port Sizes: 10,16,20,25,32,40
Acting Type: Double
Operating Pressure: 0.2~0.7MPa
(30~100psi)
Proof pressure: 1.2MPa(175psi)
Temperature: -20~70°C
Speed range: 50~500 mm/s
Max. stroke length: 1500mm
Tolerance: >2.0 mm
rodless linear guide

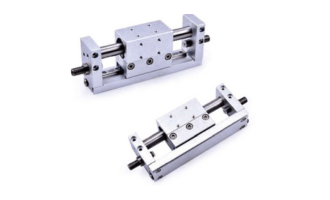

RMH Series(with Linear Guide)

Non-adjustable rubber bumpers and adjustable pneumatic cushioning on both end


Port Sizes: 10,16,20,25
Acting Type: Double
Operating Pressure: 0.2~0.7MPa
(28~100psi)
Proof pressure: 1.2MPa(175psi)
Temperature: -20~70°C
Speed range: 50~400 mm/s
Max. stroke length: 800mm
Tolerance: >1.5 mm
