AirTac's Air Grippers

An air gripper is a pneumatic device used in automation and robotics to grasp, hold, or manipulate objects. It operates using compressed air to generate gripping force, making it a popular choice in industrial applications due to its simplicity, reliability, and cost-effectiveness. Air grippers are commonly used in manufacturing, assembly lines, and material handling systems.

hand gripper

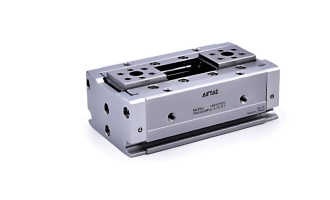

HFD Series(Compact Gripper)

Double piston drive, double output for greater clamping force


Port Sizes: 8,12,16,20,25
Acting Type: Double
Operating Pressure: 0.15~0.7MPa
(22~100psi)
Proof pressure: 1.2MPa(175psi)
Temperature: -20~70°C
Repeatability: ±0.05 mm
Longer Stroke: 60 c.p.m
Middle, Short stroke: >120 c.p.m
parallel hand

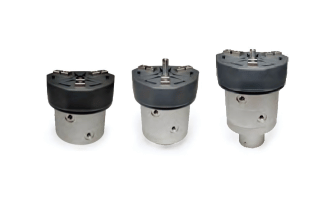

HFCQ Series(Parallel open/close hollow)

Hollow tube can be matched with mechanism to get blowing effect


Port Sizes: 16,20,25,32,40,50,63
Acting Type: Double
Operating Pressure: 0.15~0.7MPa
(22~100psi)
Fluid: Air
Temperature: -20~70°C
Repeatability: ±0.01 mm
Max. Frequency: 60,120 C.P.M
magnetic coupled

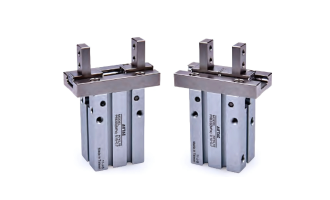

HFKL Series(Magnetic coupled/Ball Bearing)

Integrated design of linear guide roller


Port Sizes: 10,16,20,25
Acting Type: Double, single
Operating Pressure 0.15~0.7MPa
Double Acting (22~100psi)
Single acting 0.25~0.7MPa
(36~100psi)
Temperature: -20~70°C
Repeatability: ±0.01 mm
Max. Frequency: 120 C.P.M
parallel hand

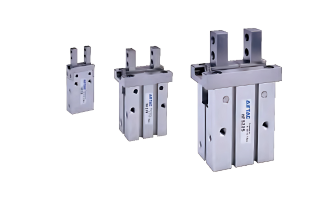

HFZ(Parallel- Ball Bearing)

With roundness magnetic switch slots


Port Sizes: 6,10,16,20,25,32,40
Acting Type: Double,single
Operating Pressure 0.15~0.7MPa
Double acting: (22~100psi)
Operating Pressure 0.25~0.7MPa
Single acting: (36~100psi)
Temperature: -20~70°C
Repeatability: ±0.01 mm
Repeatability(⌀32,⌀40): ±0.02 mm
Max. Frequency: 60, 180 C.P.M
rodless linear guide

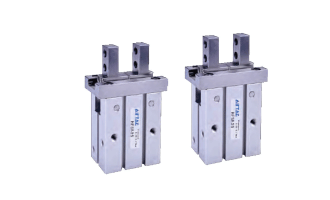

HFK(Parallel- Ball Bearing)

Six kinds of bore size and three kinds of type


Port Sizes: 10,16,20,25,32,40
Acting Type: Double,single
Operating Pressure 0.15~0.7MPa
Double acting: (22~100psi)
Operating Pressure 0.25~0.7MPa
Single acting: (36~100psi)
Temperature: -20~70°C
Repeatability: ±0.01 mm
Repeatability(⌀32,⌀40): ±0.02 mm
Max. Frequency: 60, 180 C.P.M
Air gripper

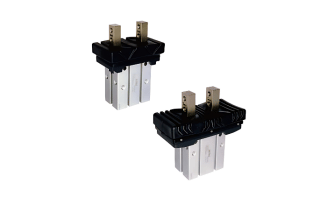

HFKP Series(Dust-Proof cover)

Dust-proof cover and roll bearing style


Port Sizes: 16,20,25,32
Acting Type: Double
Operating Pressure 0.15~0.7MPa
Double acting: (22~100psi)
Temperature: -20~70°C
Repeatability: ±0.01 mm
Repeatability(⌀32): ±0.02 mm
Max. Frequency: 60, 180 C.P.M
parallel gripper

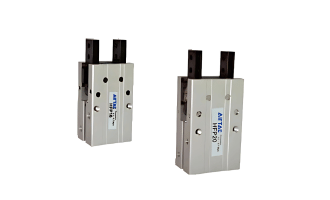

HFP Series(Mechanical Parallel Style)

Lever type gripping, Anti-Abrasion


Port Sizes: 10,16,20,25,32
Acting Type: Double,Single
Operating Pressure 0.15~0.7MPa
Double acting: (22~100psi)
Operating Pressure 0.25~0.7MPa
Single acting: (36~100psi)
Temperature: -20~70°C
Proof Pressure: 1.05MPa(150psi)
Lubrication for Gripper jaws: Grease
Max. Frequency: 60, 180 C.P.M
angular style

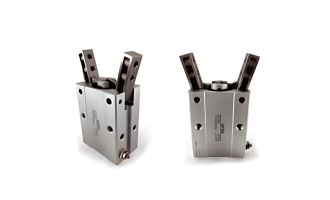

HFY Series(Angular Style)

Single Piston Structure, integrated with variable flow valve


Port Sizes: 6,10,16,20,25,32
Acting Type: Double,Single
Operating Pressure 0.15~0.7MPa
Double acting: (22~100psi)
Operating Pressure 0.25~0.7MPa
Single acting: (36~100psi)
Temperature: -20~70°C
Proof Pressure: 1.05MPa(150psi)
Lubrication for Gripper jaws: Grease
Max. Frequency: 180 C.P.M
open-close-style

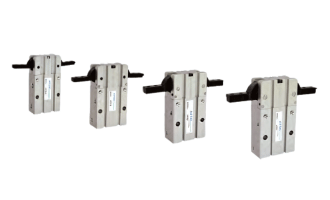

HFR Series(180° open/close style)

180° open/close style, designed dust proof at finer part


Port Sizes: 10,16,20,25,32
Acting Type: Double
Operating Pressure 0.2~0.7MPa
Double acting for ⌀10: (29~100psi)
Operating Pressure 0.15~0.7MPa
Single acting: (22~100psi)
Temperature: -20~70°C
Open Angle: -2° ~ -5°
Close Angle: 180° ±2°
Repeatability: ±0.02 mm
Max. Frequency: 60 C.P.M
open-close-style

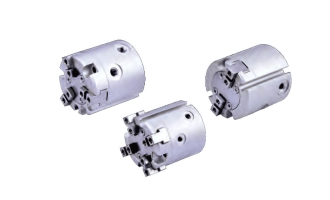

HFC Series(Parallel open/close style)

Cuniform block is adapted in interior to afford larger gripper force


Port Sizes: 16,20,25,32,40,50,63
Acting Type: Double
Operating Pressure: 0.15~0.7MPa
Double acting: (22~100psi)
Temperature: -20~70°C
Repeatability: ±0.01 mm
Max. Frequency: 60,120 C.P.M
wide-air-gripper

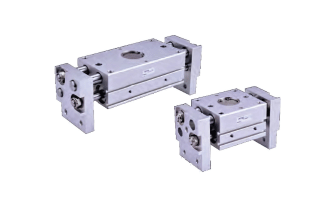

HFT Series(Wide Air Gripper)

Rack and pinion mechanism, double piston design


Port Sizes: 16,20,25,32
Acting Type: Double
Operating Pressure : 0.15~0.7MPa
Double acting: (22~100psi)
Temperature: -20~70°C
Repeatability: ±0.01 mm
Max. Frequency: 40,20 C.P.M
