    SEIMITSU Factory Automation Pvt. Ltd. is an authorised distributor of SANYO DENKI's Products. Sanyo Denki designs and manufactures AC and DC Servo Motors, Motion Controller and Stepping Motor. These systems are ideal for applications that requires high precision, high-torque, and high-speed positioning. Sanyo products are used in Semiconductor manufacturing equipment, machine tools, robotics, general industry machinery and many more.

    SANMOTION AC Servo Motors


    Ac servo motor S series

    SANMOTION S

    Motor flange size[mm] : 160
    Rated output[kW] : 3.2 ~ 4.5
    Rated speed[min-1] : -
    Max. speed[min-1] : 12000 ~ 15000
    Rated torque[N·m] : 14.3 ~ 20.4
    Peak stall torque[N·m] : 43 ~ 61.1
    Rotor inertia[×10-4kg·m2 : 4.83 ~ 6.83
    Encoder type : Incremental

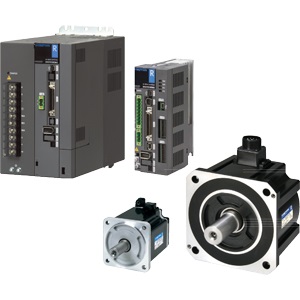

    AC Servo motor R series

    SANMOTION R

    Motor flange size[mm] : 14 ~ 320
    Rated output[kW] : 0.02 ~ 55
    Rated speed[min-1] : 1000 ~ 3000
    Max. speed[min-1] : 1000 ~ 6000
    Rated torque[N·m] : 0.023 ~ 350
    Peak stall torque[N·m] : 0.06 ~ 980
    Rotor inertia[×10-4kg·m2 : 0.0023 ~ 1440
    Encoder type : Absolute and Incremental
    AC servo motor G series

    SANMOTION G

    Motor flange size[mm] : 40 ~ 130
    Rated output[kW] : 0.03 ~ 1.5
    Rated speed[min-1] : 2000 ~ 3000
    Max. speed[min-1] : 3000 ~ 6500
    Rated torque[N·m] : 0.098 ~ 7.2
    Peak stall torque[N·m] : 0.37 ~ 21
    Rotor inertia[×10-4kg·m2 : 0.0153 ~ 8.86
    Encoder type : Absolute and Incremental
    AC motor Linear servo system

    Linear Servo System

    Rated Thrust : 140 to 340 N
    Rated Speed : 1.8 to 2.3 m/s

    SANMOTION DC Servo Motors


    DC servo motor T series

    SANMOTION T

    Motor flange size[mm] : 41 ~ 87.5
    Rated output[kW] : 0.023 ~ 0.5
    Rated speed[rpm] : 2500 ~ 3000
    Max. speed[rpm] : 2500 ~ 5000
    Rated torque[Nm] : 0.206 ~ 16.7
    Rotor inertia[kg·m2] : 0.047 ~ 6.008
    DC servo motor K series

    SANMOTION K

    Motor flange size[mm] : 42 ~ 88
    Rated output[kW] : 0.023 ~ 0.5
    Rated speed[rpm] : 2500 ~ 3000
    Max. speed[rpm] : 3000 ~ 5000
    Rated torque[Nm] : 0.42 ~ 16.7
    Rotor inertia[kg·m2] : 0.047 ~ 6

    SANMOTION Stepper Motors


    Stepper motor F5 series

    SANMOTION F5 (5 Phase)

    Motor flange size[mm]: 28 ~ 86
    Holding torque[Nm]: 0.041 ~ 6.8
    Rated current[A/phase]: 0.35 ~ 1.4
    Rotor inertia[×10-4kg·m2] 0.01 ~ 5.57
    Protection rating : IP40
    Gear type : Harmonic,Spur gear
    Power supply[V] : 24 & 36 VDC, 48 VDC,
    100 & 200 VAC class
    Single/Dual shaft: Both
    Stepper motor F2 series

    SANMOTION F2 (2 Phase)

    Motor flange size[mm] : 14 ~ 106
    Holding torque [Nm] : 0.0065 ~ 19
    Rated current[A/phase]: 0.3 ~ 6
    Rotor inertia[×10-4kg·m2]: 0.00058 ~ 22
    Protection rating : IP43, IP65
    Gear type : -
    Power supply[V] : 24 & 36 VDC
    Single/Dual shaft: Both
    Stepper motor F3 series

    SANMOTION F3 (3 Phase)

    Motor flange size[mm] : 42 ~ 60
    Holding torque [Nm] : 0.196 ~ 1.68
    Rated current[A/phase]: 3
    Rotor inertia[×10-4kg·m2]: 0.053 ~ 0.84
    Protection rating : IP40
    Gear type : -
    Power supply[V] : -
    Single/Dual shaft: Both
    Closed loop stepper motor

    SANMOTION Model No.PB

    Motor flange size[mm] 28 ~ 86
    Holding torque [Nm] : 0.1 ~ 8
    Rated current[A/phase]: -
    Rotor inertia[×10-4kg·m2]: 0.008 ~ 3
    Protection rating : IP30, IP40
    Gear type : Harmonic, spur gear
    Power supply[V] : 24 & 48 VDC,
    100 & 200 VAC class
    Single/Dual shaft: Single Shaft

    Motion Controllers


    Motion controller C series

    SANMOTION C

    Max.input power(W) : 19.2
    Power supply(V): DC24（DC19.2 ~ DC30)
    No. of inputs/outputs: 16/8
    Input type : +ve/-ve common input
    Output type : Sinking
    No.of axes : 8 axes
    Motion controller

    SANMOTION C S500

    Input power supply(V): DC24
    No. of axes: 64 axes
    Interface: EtherCAT × 1 Ethernet
    x 1 USB 3.0 ×
    1 RS-232C/
    RS-422/RS-485 × 1
