AirTac's Pneumatic Sensors

Pneumatic Sensors is a device that controls the flow of air in a pneumatic system, typically used to activate or deactivate machinery or processes. It operates by using air pressure to trigger a mechanical action, such as opening or closing a valve, which in turn controls the operation of a machine or system.

sensor switch

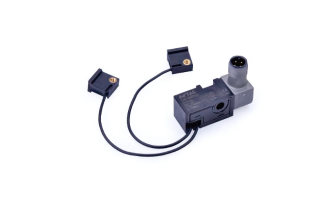

JSCK Series(Sensor Switch)


Operating range: 2mm
Voltage range: 10~30V, DC
Switch Frequency: 30Hz
Shell Material: PBT
Switch Status Clamping: Red
Switch Status Opening: Yellow
Voltage indication: Green
pneumatic sensor

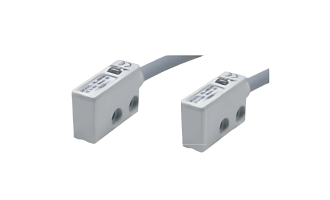

DS1-69AM(Sensor Switch)

An anti-magnetic sensor which are for AC magnetic environment


Sensor Type: Transistor
Operating voltage: 10-30V/DC
Sensitivity: 30~40 Gauss
Protection: IP67
Fire retardant grade: UL94-V0
Temperature: -10~70°C
Pneumatic sensors

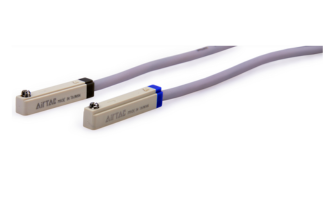

DMS Series Sensor

Oil resistance and deflection resistance, flexural curve material


Switching Frequency: 1000Hz
Impact Resistance: 50G
Temperature: -10~70°C
Standard: CE Marking, RoHS
Contact Capacity: 2.8~6.0W Max.
sensor switch

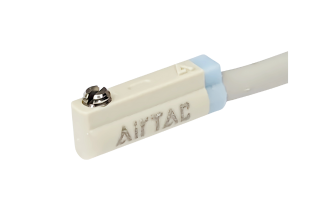

EMS Series Sensor

High deflection wire, bending resistance


Switching Frequency: 1000Hz
Power Supply voltage: 10V~28V DC
Current consumption: 3mA Max.
Impact Resistance: 50G
Temperature: -10~70°C
Standard: CE Marking, RoHS
Contact Capacity: 2.8 Max.
sensors

CMS Series Sensor

High deflection wire, bending resistance


Switching Frequency: 200Hz
Power Supply voltage: 5V~240V DC
Impact Resistance: 50G
General Temperature: -10~70°C
Heat Resistant temp. -10~125°C
Standard: CE Marking, RoHS
Repeatability: ±0.01 mm
Contact Capacity: 10W Max.
