AirTac's Slide and Rotary Table Cylinders

A slide table actuator also known as a linear slide table actuator, is a mechanical device designed to provide precise linear motion along with a guided path. It combines a linear actuator with a sliding table or carriage, enabling controlled movement of loads in a straight line. Rotary table actuator provides precise rotational motion for applications requiring controlled angular movement.

slide table cylinder

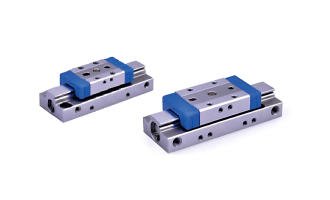

HGS Series(Slide Table Cylinder)

Body and slider with positioning pin hole which improves precision


Port Sizes: 6,8,10,12
Acting Type: Double
Operating Pressure: 29~100Psi
(0.2~0.7 MPa)
Proof pressure: 1.2MPa(175psi)
Temperature: -20~70°C
Speed range: 50~500 mm/s
Max. stroke length: 25mm
Tolerance: >0.5 mm
linear motion

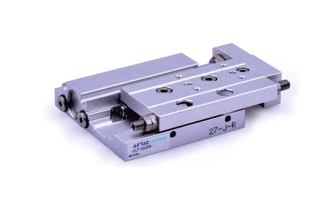

HLF Series (Slide Table Cylinder)

Cross roller linear guide and cylinder integrated type design


Port Sizes: 8,12,16,20
Acting Type: Double
Operating Pressure: 0.15~0.7MPa
(22~100psi)
Proof pressure: 1.2MPa(175psi)
Temperature: -20~70°C
Speed range: 50~500 mm/s
Max. stroke length: 100mm
Tolerance: >1.0 mm
slide table cylinder

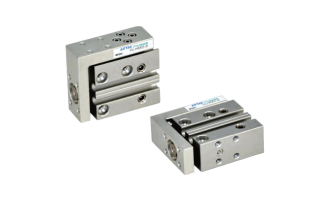

HLH Series(Slide Table Cylinder)

Drive unit and guide unit are in same barrel


Port Sizes: 6,10,16,20
Acting Type: Double
Operating Pressure: 0.15~0.7MPa
(22~100psi)
Proof pressure: 1.2MPa(175psi)
Temperature: -20~70°C
Speed range: 50~500 mm/s
Max. stroke length: 60mm
Tolerance: >1.0 mm
ball bearing type

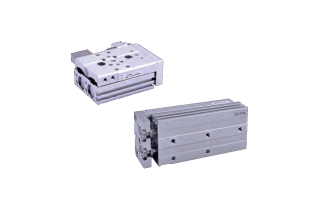

HLQ,HLQL(Ball Bearing type Slide Table)

Magnetic switch slots side of the cylinder body


Port Sizes: 6,8,12,16,20,25
Single Guide rail: 6,8(bore size)
Double Guide rail: 12,16,20,25(bore size)
Acting Type: Double
Operating Pressure: 0.15~0.7MPa
(22~100psi)
Proof pressure: 1.2MPa(175psi)
Temperature: -20~70°C
Speed range: 50~500 mm/s
Max. stroke length: 150mm
Tolerance: >1.5 mm
cross roller type

HLS,HLSL(Cross roller type Slide Table)

Work pieces can be mounted on top and front surface.


Port Sizes: 6,8,12,16,20,25
Acting Type: Double
Operating Pressure: 0.15~0.7MPa
(22~100psi)
Proof pressure: 1.2MPa(175psi)
Temperature: -20~70°C
Speed range: 50~500 mm/s
Max. stroke length: 150mm
Tolerance: >1.5 mm
ROTARY TABLE CYLINDER

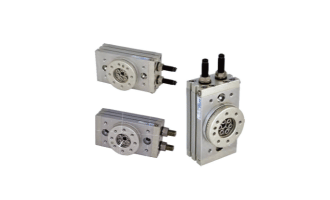

HRQ Series (Rotary Table Cylinder)

Rack and Pinion design, double cylinder structure


Port Sizes: 2,3,7,10,20,30
50,70,100,200
Acting Type: Double rack and pinion
Operating Pressure: 0.15~0.7MPa
(22~100psi)
Proof pressure: 1.2MPa(175psi)
Temperature: -20~70°C
Angle adjustment: 0~190°
Repeatable precision with bolt: 0.2°
with shock absorber: >0.5°
ROTARY TABLE CYLINDER

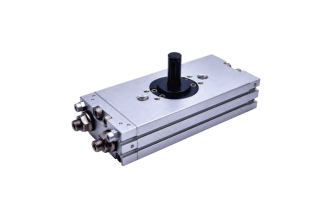

HRS Series (Rotary Table Cylinder)

Standard comes with both bumper and cushion with excellent performance.


Port Sizes: 10,15,20,30,40
Acting Type: Double rack and pinion
Operating Pressure: 0.15~0.7MPa
(22~100psi)
Proof pressure: 1.2MPa(175psi)
Temperature: -20~70°C
Angle adjustment: 0~190°
Repeatable precision: 0.2°
