  • AirTac

    • AirTac's Manual Control Valves

    Airtac Manual Control Valves are designed for precise and reliable airflow regulation in pneumatic systems, ensuring smooth and efficient operation across various industrial applications. These valves come in multiple configurations, including hand lever valves, push-pull valves, slide valves, foot pedal valves, flow control valves and non-return valves, providing flexibility for different control requirements. . Designed with durable materials such as aluminium alloy and featuring manual and mechanical operation, multi-mounting capabilities, and secure locking mechanisms.

    hand lever valve

    4H Series hand Lever Valve

    a sliding column structure, these valves ensure tight sealing and lightweight performance.


    Operation Type: Manual control
    Valve Type: 5/2-way and 5/3-way
    Pressure Range: 0-1.0 MPa (0-145 psi)
    Proof Pressure: 1.5 MPa (215 psi)
    Temperature: -20~70°C
    push-pull-valve

    3L,4L Series Push Pull Valve

    3/2 way (3L series) and 5/2 way (4L series) configurations


    Adaptable Fluid: Air
    Operation: Manual Control
    Port Sizes: 1/8", 1/4", and 3/8"
    Temperature: -20~70°C
    Material Body: Aluminium alloy
    Thread Type: PT, G, NPT thread
    hand-slide-valve

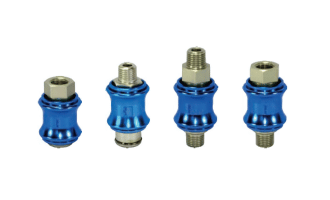

    HSV Series Hand Slide Valve

    operated 3/2-way pneumatic valve used for controlling airflow


    Fluid: Air
    Operating: Manual,direct acting
    Pressure Range: 0−1.0 MPa (0−145 psi)
    Proof pressure: 1.5 MPa (215 psi)
    Temperature: -20~70°C
    Material Body: Aluminium alloy
    hand lever valve

    4HV, 4HVL Series Hand Lever Valve

    manual control direct-acting valves available in 4/2 way & 4/3 way configurations


    Orifice Sizes: Cv=0.78 to Cv=5.27
    Fluid: Air
    Pressure Range: 0−1.0 MPa (0−145 psi)
    Proof pressure: 1.5 MPa (215 psi)
    Temperature Range: -20°C to 70°C
    Operating Angle: 90(4/3way:45°)
    Mini Cylinder

    S3 Series Control Valve

    Durable metal components and multiple mounting options


    Fluid: Air
    Operating: direct-acting
    Port Sizes: M5, 1/8", 1/4"
    Proof Pressure: 1.5 MPa (215 psi)
    Temperature: -10°C to 80°C
    Control valve

    M3 Series control valve

    convenient exhaust outlets for noise reduction


    Fluid: Air
    Operating: Direct-acting
    Port Sizes: M5, 1/8", 1/4"
    Material: Aluminium alloy body
    Valve Type: 3/2 Way
    control-valve

    M5 Series control valve

    FPM-F sealing, and Class F insulated coils


    Fluid: Air
    Operating: direct-acting
    Valve Type: 5/2 Way
    Port Sizes: M5,1/8",1/4"
    Pressure Range: 0~1.0 MPa (0~145 psi)
    Proof Pressure: 1.5 MPa (215 psi)
    Material: Aluminium alloy body
    control valve

    CM3 Series Control Valve

    suitable for diverse environmental conditions


    Fluid: Air
    Operating Type: External control
    Port Sizes: M5×0.8, 1/8", 1/4"
    Proof Pressure: 1.5 MPa(15 bar,215 psi)
    Pressure Range: 0~1.0MPa(0~145 psi)
    Temperature: -20~70°C
    flow control valve

    ZM3 Series control valve

    360° positioning,adjustable head part direction by unscrewing socket head cap screw


    Models: ZM3R,ZM3J,ZM3P
    Operating: Direct-acting
    Fluid: Air
    Pressure: -0.1~1.0MPa(-15~145 psi)
    Proof Pressure: 1.5 MPa(15 bar,215 psi)
    Orifice Size: 6.0 mm² (Cv=0.34)
    Port Sizes: 1/8"
    foot pedal valve

    3F, 3FM, 4F series Foot Pedal valve

    a high-strength plastic guard for added protection


    Fluid: Air
    Operating: Foot controlled
    Pressure: 0~1.0MPa(0~145 psi)
    Proof Pressure: 1.5 MPa (215 psi)
    Temperature: -20°C to 70°C
    flow control valve

    ASC Series Flow Control Valve

    precise air flow control with a sensitive adjustment screw


    Port Sizes: 1/8",1/4",3/8",1/2"
    Pressure: 0.05-0.95MPa(7-135 psi)
    Proof Pressure: 1.5 MPa (215 psi)
    Material: Aluminium alloy body/td>
    Temperature: -20°C to 70°C
    Non-Return valve

    NRV Series Non-Return Valve

    preventing backflow during pressure drops or reduced air consumption


    Fluid: Air
    Port Sizes: 1/8",1/4",3/8",1/2",3/4",1"
    Pressure: 0.02-1.0MPa(2.9-145 psi)
    Proof Pressure: 1.5 MPa (215 psi)
    Material: Aluminium alloy body
    pilot non-return valve

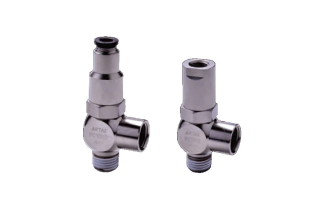

    PCV Series Pilot Non-Return Valve

    safety loops of pressure holding,enable cylinder momentary stops with accurate orientation


    Port Sizes: M5×0.8,1/8",1/4",Φ6,Φ8
    Weight: 53.2 g to 189.6 g
    Pressure Range: 0.15-1.0 MPa
    Proof Pressure: 1.5 MPa
    Temperature -20°C to 70°C
    Frequency: 6-60 cycles/minute
