AirTac's FRL Units

Engineered with precision and durability, AirTac FRL Combination ensures optimal performance by removing contaminants, regulating pressure, and providing consistent lubrication. Ideal for industrial automation, manufacturing, and packaging, these FRL Units enhances equipment efficiency, reduces downtime, and extends the lifespan of pneumatic components.

F.R.L.COMBINATIONS

AC, BC Series

air preparation units ensure high efficiency, low pressure loss, and durability

Port Sizes:	1/8", 1/4", 3/8", 1/2"
Operating Pressure:	Standard
Filter Precision:	5μm or 40μm
Regulation:	Steady and adjustable
Lubrication:	mist flow

AFC, BFC Series

Pressed-in self-locking mechanism can prevent abnormal movement of the set pressure caused by external interfere.

Port Sizes:	1/8", 1/4", 3/8", 1/2"
Filter Precision:	5μm or 40μm
Max. Pressure:	1.0 MPa (145 psi)
Proof Pressure:	1.5 MPa (215 psi)
Temperature:	-5°C to 70°C
Lubrication:	ISO VG 32 or equivalent

GAC100-600 Series

Two drain types are available: manual drain + semi-auto drain and automatic drain

Port Sizes:	M5, 1/8", 1/4", 3/8", 1/2", 3/4", 1"
Filter Precision:	5μm or 40μm
Max. Pressure:	1.0 MPa (145 psi)
Proof Pressure:	1.5 MPa (215 psi)
Temperature:	-5°C to 70°C
Lubrication:	ISO VG 32 or equivalent

GAFC100-600 Series

Quick and reliable mounting clamps makes it convenient to install

Port Sizes:	M5, 1/8", 1/4", 3/8", 1/2", 3/4", 1"
Filter Precision:	5μm or 40μm
Max. Pressure:	1.0 MPa (145 psi)
Proof Pressure:	1.5 MPa (215 psi)
Temperature:	-5°C to 70°C
Lubrication:	ISO VG 32 or equivalent

GTC, GTFC, GTFR GTF, GTL SERIES

A shorter PC bowl version of GA200 series.

•No Auto drain available

•Drain bowl and oil bowl are shorter than GA200

•Drain type is semi-auto drain + manual drain

FILTER & REGULATOR COMBINATION

GAFR100-600 Series

Circular square pressure gauge with clip and magnifier is used

Port Sizes:	1/8",1/4",3/8",1/2",3/4",1"
Filter Precision:	5μm or 40μm
Max. Pressure:	1.0 MPa (145 psi)
Proof Pressure:	1.5 MPa (215 psi)
Temperature:	-5°C to 70°C

AFR, BFR Series

The pressure loss is low and the efficiency of water separation is high

Port Sizes:	1/8",1/4",3/8",1/2"
Filter Precision:	5μm or 40μm
Max. Pressure:	1.0 MPa (145 psi)
Proof Pressure:	1.5 MPa (215 psi)
Temperature:	-5°C to 70°C
Weight:	400g
Capacity of drain bowl:	Upto 60CC

GPFR Series

Unique diversion structure spins the air flowing to separate liquid from air

Port Sizes:	1/8",1/4",3/8",1/2"
Filter Precision:	0.3μm or 0.01μm
Max. Pressure:	1.0 MPa(145 psi)
Proof Pressure:	1.5 MPa(215 psi)
Temperature:	-5°C to 70°C
Weight:	310 To 910g
Capacity of drain bowl:	25CC to 100CC

FILTERS

GAF100-600 Series

air filtration with high moisture separation and low-pressure loss.

Port Sizes:	M5,1/8",1/4",3/8",
	1/2",3/4",1"
Filter Precision:	5μm or 40μm
Max. Pressure:	1.0 MPa(145 psi)
Proof Pressure:	1.5 MPa(215 psi)
Temperature:	-5°C to 70°C
Weight:	55g to 1040g
Capacity of drain bowl:	6CC to 205CC

AF,BF Series

pressure loss is low and the efficiency of water separation is high

Port Sizes:	M5,1/8",1/4",3/8",1/2"
Filter Precision:	40μm or 5μm
Pressure range:	0.15–1.0MPa (20–145psi)
Proof Pressure:	1.5 MPa(215 psi)
Temperature:	-5°C to 70°C
Weight:	140g to 330g
Capacity of drain bowl:	15CC to 60CC

GVF Series

pressure loss is low and the efficiency of water separation is high

Port Sizes:	M5,1/8",1/4",3/8",1/2"
Filter Precision:	40μm or 5μm
Pressure range:	-100~0Kpa
Proof Pressure:	0.5MPa
Temperature:	-5°C to 70°C
Weight:	210g to 370g
Capacity of drain bowl:	25CC to 45CC

REGULATORS

GAR100-600 Series

Balanced design is adapted for pressure adjustment mechanism

Port Sizes:	1/8”,1/4”,3/8”,
	1/2”,3/4”,1”"
Pressure Range:	0.05–0.9MPa (7–130psi)
Max. Pressure:	1.0 MPa(145 psi)
Proof Pressure:	1.5 MPa(215 psi)
Temperature:	-5°C to 70°C
Weight:	170g to 1390g

GPR200-400 Series

High pressure regulating accuracy and rapid response

Port Sizes:	1/8”,1/4”,3/8”,1/2"
Max. Pressure:	1.0MPa (145psi)
High Pressure:	0.01~0.08MPa (1.5~116psi)
Sensitivity:	Within 0.2%F.S.
Repeatability:	±0.5%F.S.
Temperature:	-5°C to 70°C
Weight:	144g to 717g

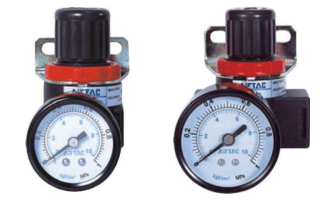

AR,BR Series

Pressed-in self-locking mechanism can prevent abnormal movement of set pressure caused by external interfere.

Port Sizes:	1/8”,1/4”,3/8”,1/2"
Pressure Range:	0/05~0.9MPa(7~130Psi)
Max. Pressure:	1.0MPa (145psi)
Proof Pressure:	1.5MPa (215psi)
Temperature:	-5°C to 70°C
Weight:	200g to 230g

SR Series

Installation of regulator with independent use in pipeline

Fluid Type:	Air
Port Sizes:	1/8”,1/4”
Standard Range:	0.05~0.9MPa(7~130Psi)
Lower Pressure:	0.03~0.4MPa(4~57Psi)
Temperature:	-5°C to 70°C

SDR Series

Back pressure structure, compact type, cost effective

Fluid Type:	Air
Port Sizes:	1/8”,1/4”,M5
Pressure Range:	0.05~0.9MPa(7~130Psi)
	0.03~0.04MPa(4~57Psi)
Max. Pressure:	1.0MPa (145psi)
Proof Pressure:	1.5MPa(215psi)
Temperature:	-5°C to 70°C

GVR Series

Pressed-in self-locking mechanism can prevent abnormal movement of set pressure caused by external interfere.

Fluid Type:	Air
Port Sizes:	1/8”,1/4”,3/8”
Pressure Range:	-100~1.3kPa
Max. Pressure:	-1.0kPa
Air Consumption:	0.6/min(ANR)
Temperature:	-5°C to 70°C
Weight:	198 to 336

LUBRICATORS

GAL100~600 Series

Drip nozzle structure produces negative pressure in oil dripping outlet

Port Sizes:	1/8”,1/4”,3/8”,
	1/2”,3/4”,1”"
Pressure Range:	0.05~0.9MPa (7~130psi)
Proof Pressure:	1.5 MPa(215 psi)
Temperature:	-5°C to 70°C
Lubricant:	ISO VG 32 or equivalent
Oil Bowl Capacity:	36CC to 410CC
Weight:	200g to 1040g

AL,BL Series

Oil dripping can be directly observed by transparent inspection sheet.

Port Sizes:	1/8",1/4”,3/8” 1/2"
Pressure Range:	0.05~0.9MPa(7~145Psi)
Proof Pressure:	1.5MPa (215psi)
Temperature:	-5~70°C (Unfreeze)
Lubricant:	ISO VG 32 or equivalent
Oil Bowl Capacity:	25CC to 90CC
Weight:	170g to 250g

GA Series-Gas Distribution Block

Installed between regulator or filter & regulator or lubricator to divide air flow

Port Sizes:	1/8",1/4”,3/8”,
-	½”,3/4",1”
Pressure Range:	0~0.1MPa(0~145Psi)
Proof Pressure:	1.5MPa (215psi)
Temperature:	-20~70°C
Brackets:	type T,type L,type U
