Products

  • AirTac

    • AirTac's Solenoid Valves

    AirTac Solenoid Valves are designed to deliver fast response rates (in milliseconds), greater accuracy with energy efficiency. Their compact and durable design allows smooth integration with pneumatic systems. These valves are ideal for applications where precise flow control, such as irrigation systems, automobile manufacturing, medical, HVAC systems, food, chemical and industrial automation.

    solenoid valves

    CPV10 Series

    Micro-solenoid valves (3/2 way) with anti-surge components.


    Fast activation: On (<7ms); Off (< 7ms)
    Nominal Diameter: Φ0.55mm
    Operating Pressure: 0~114 psi (0~0.8 MPa)
    Proof Pressure: 175 psi (1.2 MPa)
    Operating Temperature: -20~70°C
    Weight: 15g
    solenoid valve

    CPV15 Series

    High-flow solenoid valves with a compact design.


    Fast activation: On <10ms; Off <10ms
    Valve Type: 3/2 micro-solenoid valve
    Nominal Diameter: Φ0.8mm
    Operating Pressure: 21~114 psi
    Proof Pressure: 175 psi (1.2 MPa)
    Temperature: -20~70°C
    3V1 Series

    3V1 Series

    Acting solenoid valves that are normally closed, providing flexible direction changes without lubrication.

    Valve Type: 3 port 2 position
    Pressure: 0~114 psi (0~0.8 MPa)
    Proof Pressure: 175 psi (1.2 MPa).
    Temperature: -20~70°C
    Activating time : below 0.05 sec

    3V2 Series

    Solenoid valves with a sliding column structure.


    Valve Type: 3/2 way valve
    Proof Pressure: 175 psi (1.2 MPa).
    Temperature: -20~70°C
    Power Consumption: DC: 7.0W; AC: 7VA
    Protection: IP65(DIN40050)
    Activating time: 0.05 sec and below
    3V2M Series

    3V2M Series

    Direct acting solenoid valve with 3/2 way but with manifold


    Operating Pressure : 0~114 psi (0~0.8MPa)
    Proof Pressure: 175 psi (1.2 MPa)
    Temperature: -20~70°C
    Material body : Aluminium alloy
    Fluid Compatibility: Air

    3V3 Series

    Direct-acting solenoid valves (3/2 way) available in normally closed and normally open types


    Operating Pressure: 0~0.8MPa
    Proof Pressure: 1.2MPa
    Temperature: -20°C to 70°C
    Electrical Entry: Terminal, flying leads
    Structure Mode: Coaxial blanking

    6TV Series

    These Solenoid valves designed for high flow rates.


    Valve Type: 3/2 Way
    Acting Type: Direct acting
    Pressure: 0.15~0.8MPa
    Proof Pressure 1.2MPa
    Material Body: Aluminium alloy
    Lubrication : Not required
    Electrical Entry: terminal, horizontal and vertical

    3V100~300 Series

    Compact and durable 3-port 2-position air valves with internal pilot


    Operating Pressure: 21-114 psi (0.15-0.8 MPa)
    Proof Pressure: 175 psi (1.2 MPa)
    Temperature: -20°C to 70°C
    Body Material: Aluminium alloy
    Thread Type : NPT thread available
    Lubrication: Not required

    6D/6DW Series

    a centralized pilot-operated air valve system designed for simplified installation.


    Proof Pressure: 1.2MPa (175 psi)
    Temperature: -20°C to 70°C
    Fluid: Air
    Installation: DIN rail or fixed panels
    Mounting: Manifold or individual

    6V0500~300 Series

    Solenoid valves (5/2 and 5/3 way) offering high flow capacity and reliable performance.


    Operating Pressure: 0.15 to 0.8 MPa
    Proof Pressure: 1.2 MPa
    Temperature: -20°C to 70°C
    Voltage: DC24V,AC110V,AC220V
    Power: DC: 2.5W; AC: 3VA
    Port Sizes: Ø8,Ø10,Ø12,Ø16mm

    6HV Series

    an integrated solenoid valves (5/2 and 5/3 way) designed for high efficiency


    Pressure: 6HV0530/6HV130: 0.2–0.8MPa (29–114 psi)
    Others: 0.15–0.8MPa (21–114 psi)
    Proof Pressure: -20°C to 70°C
    Material: Aluminium alloy
    Exhaust Type: Main and pilot valve with centralized exhaust

    7V0500~300 Series

    7V Series Solenoid Valves (5/2 and 5/3-way) is a high-performance pneumatic control valve


    Pressure: 7V0530/7V130: 0.2–0.8MPa (29–114 psi)
    Others: 0.15–0.8MPa (21–114 psi)
    Proof Pressure: 1.2MPa (175 psi)
    Temperature: -20°C to 70°C
    Material: Die-cast aluminium alloy

    4V100~400 Series

    Durable solenoid valves with a wide range of configurations.


    Valve Type: 5/2 position, 5/3 position
    Operating Pressure: 0.15–0.8MPa (21–114 psi)
    Proof Pressure: 1.2MPa (175 psi)
    Material: Aluminium alloy
    Acting: Internal or external pilot

    4M100~300 Series

    Solenoid valves with manual override capabilities, allowing for manual operation during setup and maintenance.


    Temperature: -20°C to 70°C
    Operating Pressure: 0.15-0.8 MPa (21-114 psi)
    Proof Pressure: 1.2 MPa (175 psi)
    Material: Aluminium alloy
    Frequency: 4 to 5 cycles/sec

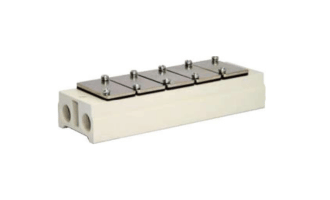

    Manifold

    The manifold series integrates directional control valves of the same series


    Compatible Valve: 4A100, 4A200, 4A300, 4A400 Series
    Temperature: -20°C to 70°C
    Fluid: Air

    ESV Series (ISO Standard)

    ISO-standard solenoid valves designed for compatibility and reliability in global applications


    Acting Type: Extend Pilot
    Lubrication: Not required
    Proof Pressure: 1.5MPa (15 bar) (215 psi)
    Temperature: -20°C to 70°C
    Port Threads: PT thread and G thread available
