Oiles

SEIMITSU FACTORY AUTOMATION PVT. LTD.

Oiles 80 Oil-impregnated polyacetal bearings

The Oiles 80 Series is referred to as self-lubricating bearings made of polyacetal wherein lubricating oil and unique filler are distributed uniformly.

Features

  • Due to its self-lubricating properties, Serviceable without the need for lubrication
  • The Oiles 80 series has superior load resistance along with good wear resistance.
  • It is a low coefficient of friction due to become superior speed characteristics.
  • Due to its uniqueness it prevents stick slips and Squeak noises.
  • The Oiles 80 Series is Injection Molded and it has good mass productivity and is able to make complicated shapes.

Service Range

Lubrication Condition Dry
Service temperature range (°C) -40~+80
Allowable max. PV value (N/mm2・m/s) 2.45

Mechanical Properties

Tensile strength ASTM D 638 N/mm²{ kgf/cm²} 51.0 {520}
Compressive stress 1% deformation
10% deformation
ASTM D 695 N/mm²{ kgf/cm²} 21.1 {215}
81.9 {835}
Izod impact strength (with notch) ASTM D 256 J/m {kgfcm/cm} 58.8 {6.00}
Oiles bushing 80B

Oiles 80 Bushings 80B

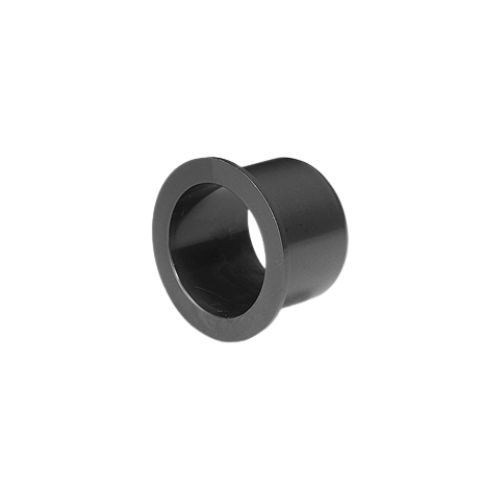

Oiles flange bushing 80F

Oiles 80 Flange Bushings 80F

OILES Washers 80w

Oiles 80 Washers 80W

OILES Washers 83w

Oiles 83 Washers 83W

OILES Bar stock 80M

Oiles 80 Bar Stock 80M

OILES plate material 80P

Oiles 80 Plate Material 80P

OILES Pipe stock 80s

Oiles 80 Pipe Stock 80S
