Oiles Aramid M/F1 Aromatic polyamide bearings

The Oiles Aramid M series is a line of heat-resistant engineering plastics made of aromatic polyamide (meta-aramid). The Oiles Aramid F1 series is an upgraded version of the Oiles Aramid M series. They inherit the heat resistance and hardness of the Oiles Aramid M series, as well as the improved wear resistance and low friction properties required for bearings

Features

  • Has excellent heat resistance, mechanical properties, and electrical insulation. Simple to the machine.
  • Superior performance characteristics include radiant ray resistance, chemical resistance, hydrolysis resistance, fire resistance, no gas production in a vacuum, and so on.
  • Standard products in various ball shapes and machining materials are available.

Mechanical Properties Aramid M

Co-efficient of linear expansion - x 10¯⁵ °C¯¹ 3.6
Tensile elongation - % 2
Tensile strength JIS K 7161-1, -2 N/mm² 98
Compressive strength JIS K 6911 N/mm² 235
Hardness JIS K 7202 HRM 123

Mechanical Properties Aramid F1

Tensile strength JIS K 7161-1, -2 N/mm² Room temp 86.4
100°C 68.6
200°C 57.3
Elongation - % 1.5
Compressive strength JIS K 6911 N/mm² 207
Co-efficient of linear expansion - x 10¯⁵ °C¯¹ 4.4
Hardness JIS K 7202 HRM 115
Oiles Armid M bar stock

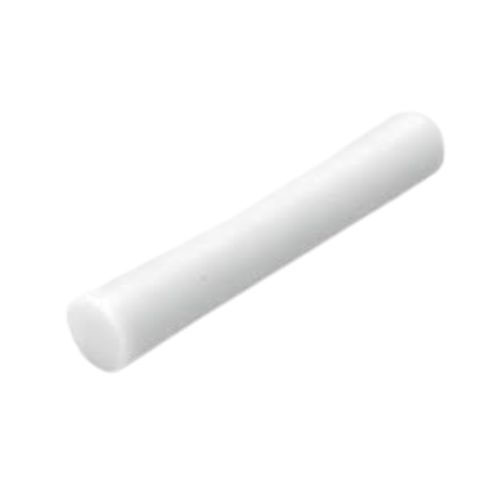

Oiles Aramid M Bar Stock AMM

Oiles Armid M bushings

Oiles Aramid M Bushings AMS

Oiles Armid M discs AMD

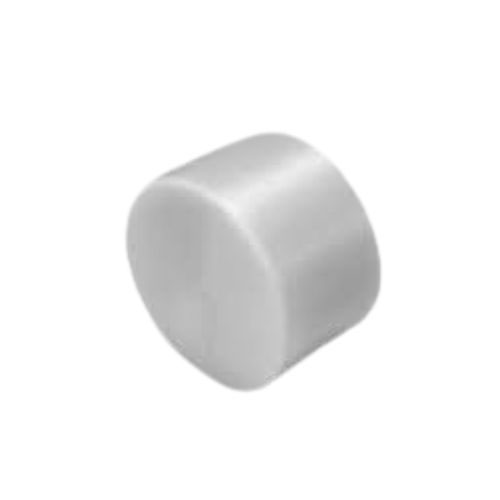

Oiles Aramid M Discs AMD

Oiles M Plate material AMP

Oiles Aramid M Plate Material AMP

Oiles Armid M-balls ABG

Oiles Aramid M Balls ABG

Oiles armid F1 bar stock AF1M

Oiles Aramid F1 Bar Stock AF1M

Oiles Armid F1 Discs AF1D

Oiles Aramid F1 Discs AF1D
