CKD Parallel Hands

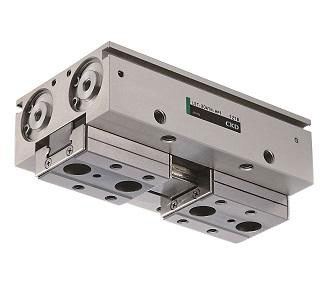

CKD Low profile long stroke hand LST-HP1 Series

Low-profile Long stroke hand [Model No.LST-HP1]

[Bore size] φ8×2, φ12×2, φ16×2, φ20×2

[Operating stroke length]

Short stroke : 8, 12, 16, 20mm

Middle stroke : 16, 24, 32, 40mm

Long stroke : 32, 48, 64, 80mm

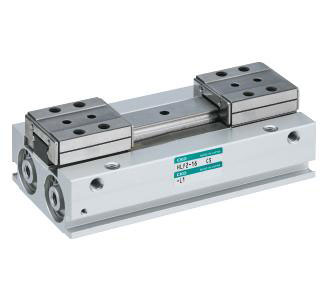

CKD Low profile long stroke hand hlf2 Series

Low-profile Long stroke hand [Model No.HLF2]

Thin body equipped with a linear guide to enable precision handling with a long stroke. 3 types of stroke can be selected to suit the application.

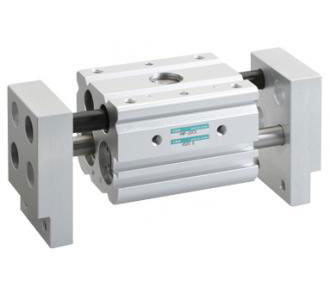

CKD Compact wide parallel hand HMF Series

Compact wide parallel hand [Model No.HMF]

[Operation stroke] HMF : Standard: 30, 40, 50, 70, 100 mm Long stroke: 60/80/100/120/160/200mm

HMF-G: Standard: 30, 40, 50 mm Long stroke 1: 60/80/100/120 mm

CKD Linear slide hand LSH-HP1 series

Linear slide hand[Model No.LSH-HP1]

【Bore size】φ6・φ10・φ16・φ20・φ25・φ32mm

【Operating strokes】

Standard : 4, 6, 10, 14, 22mm

Long stroke : 8, 12, 18, 22mm

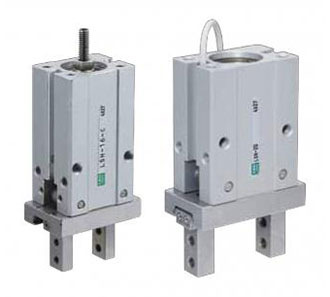

CKD Linear slide hand LSH series

Linear slide hand[Model No.LSH]

High rigidity is achieved by integrating the guide rail, master jaw, and hand with linear slide.

In addition, the mounting direction can be selected from three types (axial (upper), horizontal and vertical), increasing the freedom of design.

[Operating stroke length:] 4, 6, 10, 14 mm

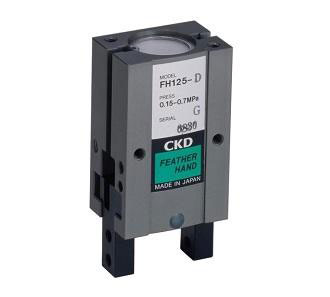

CKD Feather hand FH100 series

Feather hand (mini-parallel hand) [Model No.FH100]

[Operating stroke length]: 8, 11, 14, 18, 20 mm

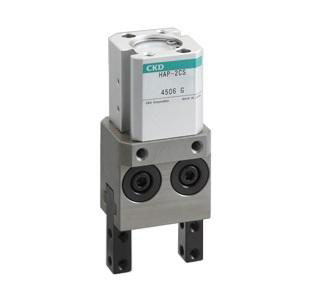

CKD parallel hand HAP series

Parallel hand [Model No.HAP]

Special cam type compact parallel hand, making combination adjustments unnecessary.

[Operating stroke length:] 8, 16, 26, 41 mm

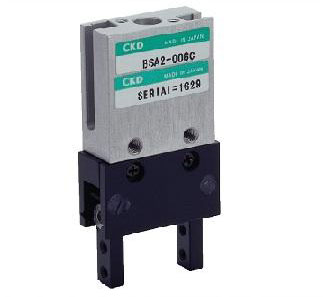

Miniature parallel hand BSA2 series

Miniature cross roller parallel hand [Model No.BSA2]

Miniature type allowing multiple-unit mounting.

[Operating stroke length]: 4 mm

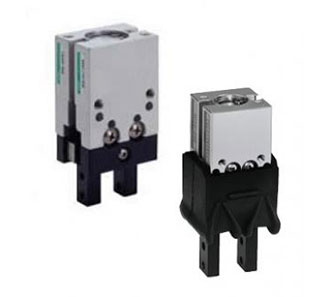

CKD compact cross roller parallel hand

Compact cross roller parallel hand [Model No.BHA・BHG]

Parallel hand capable of high precision and smooth operation with cross roller guide. [Operating stroke length]: 5, 9, 11, 15 mm

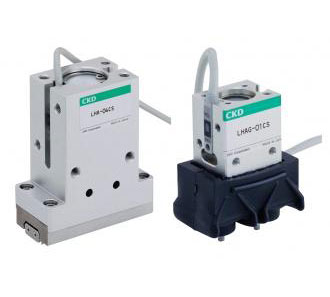

CKD Linear guide hand LHAG series

Linear guide hand [Model No.LHA・LHAG]

Hand designed for the high durability required to handle higher-speed devices.

[Operating stroke length]: LHA: 4, 5, 9, 11, 15, 20 mm LHAG: 5, 9, 11, 15, 20 mm

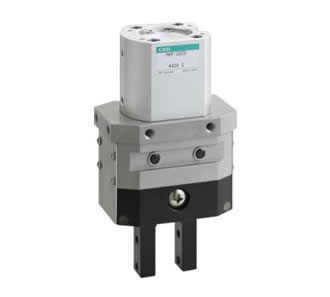

CKD Cross roller parallel hand HKP series

Cross roller parallel hand[Model No.HKP]

Bearings realize high precision with cross roller guide.

[Operating stroke length]: 24, 30, 36, 40, 60 mm

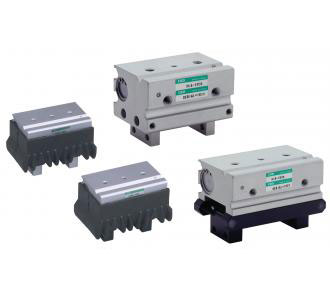

CKD Thin parallel hand

Thin parallel hand[Model No.HLA・HLB・HLAG・HLBG]

Smooth operation realized with high precision, and environmental resistance achieved if rubber cover is attached.

[Operating stroke length]:

HLA/HLAG: 15, 20, 25 mm

HLB/HLBG: 13, 18, 23 mm

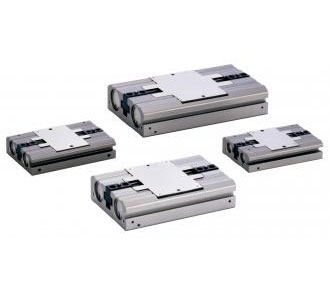

CKD Ultra thin parallel hand

Ultra-thin parallel hand [Model No.HLD]

Extremely thin / high rigidity. Powerful gripping force realized.

[Operating stroke length]: 12, 16, 20, 30 mm

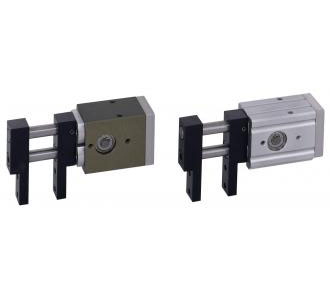

CKD Horizontal parallel hand

Horizontal parallel hand [Model No.HCP]

Thin, lightweight and compact practical hand.

[Operating stroke length]: 20, 30, 40 mm

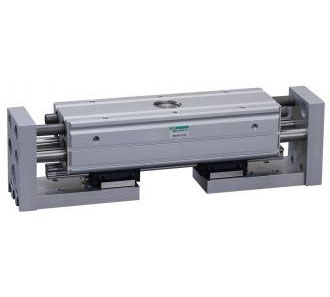

CKD LM Guided wide parallel hand HMFB series

LM guided large wide parallel hand [Model No.HMFB]

Wide parallel hand with LM guide which has low overall height and a wide range of combined use.

[Operating stroke length]: Long stroke 1: 100, 120, 160 mm Long stroke 2: 120, 160, 200 mm

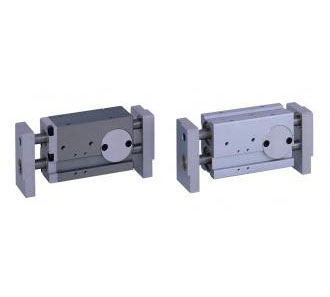

CKD Wide parallel hand HFP series

Wide parallel hand [Model No.HFP]

Combination adjustments are unnecessary, achieving compact practicality.

[Operating stroke length]: 20, 30, 40, 60 mm

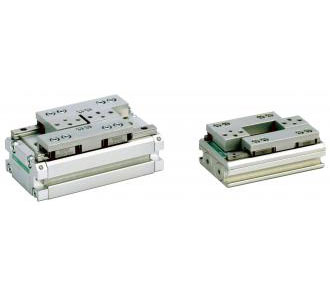

CKD Thin long stroke parallel hand

Thin long stroke parallel hand [Model No.HLC]

Realizes a thin linear guide with long stroke length, which also improves durability. A wide range of variations according to specifications available.

[Operating stroke length]: Standard: 20, 30, 40, 50, 60, 70 mm Long stroke 1: 60, 80, 100, 120, 140 mm

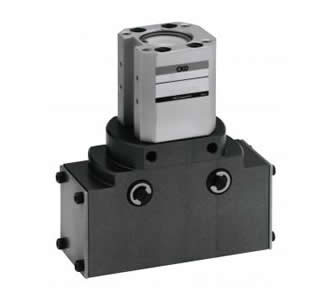

CKD Long stroke parallel hand HGP series

Long stroke parallel hand [Model No.HGP]

Lightweight, compact and ultra long stroke length realized.

[Operating stroke length]: 56 mm

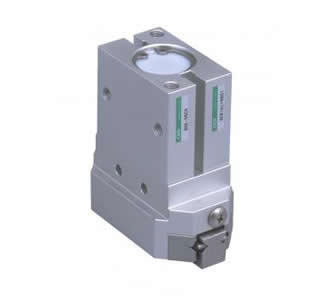

CKD Centering hand BHE series

Centering hand [Model No.BHE]

Demonstrates power in precision work with reliable high accuracy.

[Operating stroke length]: 7, 10, 14, 16, 22 mm

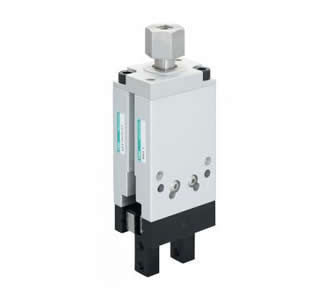

CKD Mechanical hand BHA-FC series

Mechanical hand[Model No.BHA-FC]

Mechanical hand that grips the outer diameter with spring force. Ideal for rotary tables and shuttle mover hands where air piping cannot be used. Open side supports high-speed tact with drive via external force, cam drive, etc.

[Operating stroke length]: 5, 9, 11, 15, 20 mm

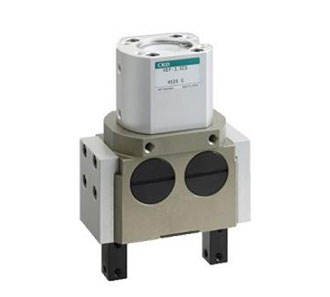

CKD Bearing parallel hand HEP series

Bearing parallel hand [Model No.HEP]

A high gripping parallel hand with a rack and pinion gear drive mechanism. It has a simple structure with the guide rod supported by bearings.

[Operational stroke length]: 24, 36, 40, 50, 60 mm
