CKD Chucks

▪ it prevents the ingress of chips and water droplets, and improves the environment resistance.

▪ [Bore size] Φ20 to Φ100

▪[Operation stroke] 5 to 23 mm

▪[Gripping force] 28 to 780N

▪A hollow hole model has been added to the thin long stroke CKS Series.

▪The hollow hole allows for the attachment of pushers, air blowers, sensors, etc.,

[Operation stroke]

Standard:10~32mm

Hollow type：16 to 50mm

▪ This is the basic model of the 3-way jaw chuck. It is thin, lightweight, compact and a high gripping force is realized.

[Operation stroke]

Standard: 5 to 23 mm

Long stroke: 30 to 40mm

[Gripping force]: 17 to 780N

[Bore size]: Φ16 to Φ100

▪ 3-way jaw chuck bearing mechanism.

▪ Hand changer that supports the factory automation of multi-model workpieces.

▪Automatic exchange of multiple hands and tools possible. Position locking mechanism is provided.

▪ Handling chuck with a focus on stroke.

▪ [Operating stroke length]: 20, 40 mm

▪ Lightweight, compact handling chuck

▪ [Operating stroke length]: 5/6/7/9/20/25/30/38 mm

▪ Hollow chuck which enables multi-function installation with a lightweight, compact design.

▪[Operating stroke length]: 5, 7, 8, 16 mm

▪ Thin, lightweight, compact and high gripping power realized.

▪ [Operating stroke length]: 6, 8, 10, 12 mm

▪ Thin body long stroke chuck.

▪ [Operating stroke length]

▪ Standard: 80, 130 mm

▪ Short stroke length: 40, 65 mm

▪ 2-jaw type which is thin, lightweight, compact and realizes high gripping power.

▪ [Operating stroke length]: 5, 6, 8, 10, 12, 16, 20, 23 mm

▪ Mechanical chuck, Ideal for rotary tables and shuttle mover hands where air piping cannot be used. It is also ideal for heat-resistant hands. It grips the outer diameter by spring force.

▪[Operating stroke length]: 5, 6, 8, 10 mm

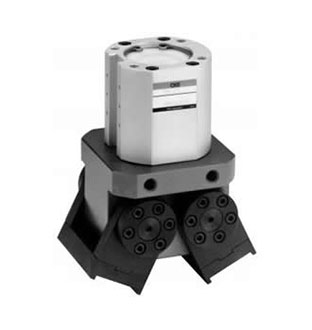

• ▪ Thin hand that allows wide angle 180° opening / closing.
• ▪ Newly released Φ12, Φ20.
• ▪ [Bore size] ∅12 to ∅25
• ▪ [Open / close angle] -4° to 184°
• ▪ [Gripping force] 16 to 120N

▪ Lightweight, small, and compact.

▪ [Open / close angle] -5° to 20°

▪ Lightweight and compact fulcrum hand.

▪ [Open / close angle] -5° to 20°

▪ Smooth movement without reaction is possible.

▪ [Open / close angle] 0° to 180°

▪ High gripping power hand that allows wide angle

▪ 180°opening / closing.

▪ [Open / close angle] -4° to 184°

▪ High gripping power realized in a compact body.

▪ [Open / close angle] -3° to 28°

▪ A variety of small jaws (soft) is available to match user machining needs.

[Bore size] φ8×2, φ12×2, φ16×2, φ20×2

[Operating stroke length]

Short stroke : 8, 12, 16, 20mm

Middle stroke : 16, 24, 32, 40mm

Long stroke : 32, 48, 64, 80mm

Thin body equipped with a linear guide to enable precision handling with a long stroke. 3 types of stroke can be selected to suit the application.

[Operation stroke] HMF : Standard: 30, 40, 50, 70, 100 mm Long stroke: 60/80/100/120/160/200mm

HMF-G: Standard: 30, 40, 50 mm Long stroke 1: 60/80/100/120 mm

【Bore size】φ6・φ10・φ16・φ20・φ25・φ32mm

【Operating strokes】　

Standard : 4, 6, 10, 14, 22ｍｍ

Long stroke : 8, 12, 18, 22mm

High rigidity is achieved by integrating the guide rail, master jaw, and hand with linear slide.

In addition, the mounting direction can be selected from three types (axial (upper), horizontal and vertical), increasing the freedom of design.

[Operating stroke length:] 4, 6, 10, 14 mm

[Operating stroke length]: 8, 11, 14, 18, 20 mm

Special cam type compact parallel hand, making combination adjustments unnecessary.

[Operating stroke length:] 8, 16, 26, 41 mm

Miniature type allowing multiple-unit mounting.

[Operating stroke length]: 4 mm

Parallel hand capable of high precision and smooth operation with cross roller guide. [Operating stroke length]: 5, 9, 11, 15 mm

Hand designed for the high durability required to handle higher-speed devices.

[Operating stroke length]: LHA: 4, 5, 9, 11, 15, 20 mm LHAG: 5, 9, 11, 15, 20 mm

Bearings realize high precision with cross roller guide.

[Operating stroke length]: 24, 30, 36, 40, 60 mm

Smooth operation realized with high precision, and environmental resistance achieved if rubber cover is attached.

[Operating stroke length]:

HLA/HLAG: 15, 20, 25 mm

HLB/HLBG: 13, 18, 23 mm

Extremely thin / high rigidity. Powerful gripping force realized.

[Operating stroke length]: 12, 16, 20, 30 mm

Thin, lightweight and compact practical hand.

[Operating stroke length]: 20, 30, 40 mm

Wide parallel hand with LM guide which has low overall height and a wide range of combined use.

[Operating stroke length]: Long stroke 1: 100, 120, 160 mm Long stroke 2: 120, 160, 200 mm

Combination adjustments are unnecessary, achieving compact practicality.

[Operating stroke length]: 20, 30, 40, 60 mm

Realizes a thin linear guide with long stroke length, which also improves durability. A wide range of variations according to specifications available.

[Operating stroke length]: Standard: 20, 30, 40, 50, 60, 70 mm Long stroke 1: 60, 80, 100, 120, 140 mm

Lightweight, compact and ultra long stroke length realized.

[Operating stroke length]: 56 mm

Demonstrates power in precision work with reliable high accuracy.

[Operating stroke length]: 7, 10, 14, 16, 22 mm

Mechanical hand that grips the outer diameter with spring force. Ideal for rotary tables and shuttle mover hands where air piping cannot be used. Open side supports high-speed tact with drive via external force, cam drive, etc.

[Operating stroke length]: 5, 9, 11, 15, 20 mm

A high gripping parallel hand with a rack and pinion gear drive mechanism. It has a simple structure with the guide rod supported by bearings.

[Operational stroke length]: 24, 36, 40, 50, 60 mm

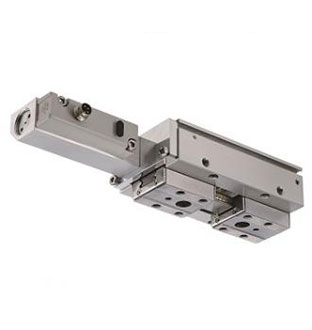

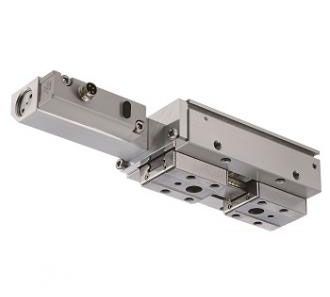

The LSTM-HP2 is a low-profile long stroke hand that incorporates an LVDT sensor for measuring length.

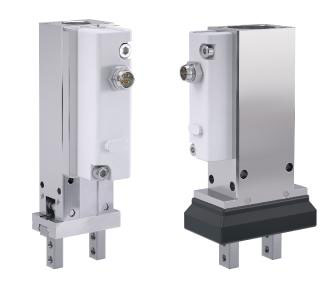

The LSHM-HP2 is a linear slide parallel hand that incorporates an LVDT sensor for measuring length.

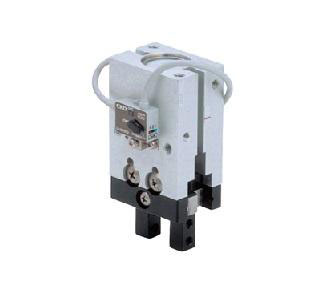

A length measuring sensor is installed onto the small hand component. This enables work on workpieces (actuator function) and detection / inspection (defective parts check / simple length measurement) at the same time.

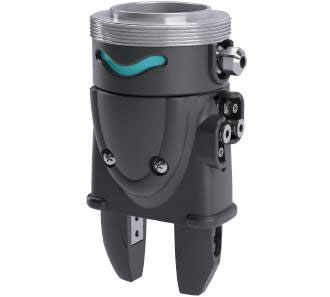

A compact type that does not interfere with the course of the robot's movements.

Stroke : 18 mm

Gripping

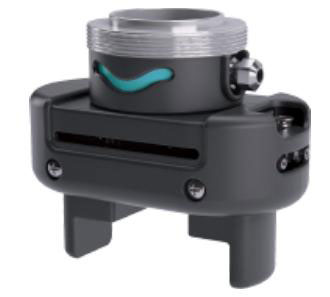

Long stroke with reduced height.

Stroke : 32 mm

Gripping force : 85 N

Weight : 1.0kg

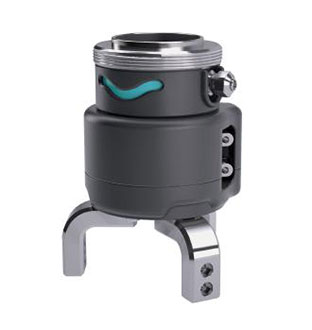

3-Way Finger type, ideal for cylindrical and round workpieces.

Stroke : 10 mm

Gripping force : 125N

Weight : 1.1kg

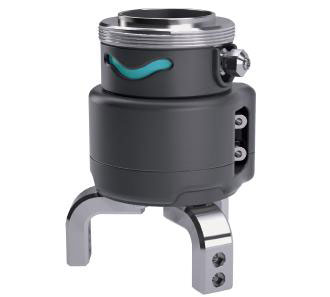

3-Way Finger type, ideal for cylindrical and round workpieces.

Stroke : 10 mm

Gripping force : 125N

Weight : 1.1 kg

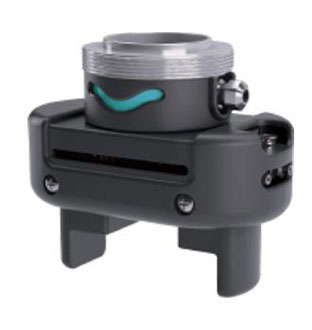

Long stroke with reduced height.

Stroke : 32 mm

Gripping force : 85 N

Weight : 1.0kg

A compact type that does not interfere with the course of the robot's movements.

Stroke : 18 mm

Gripping force : 42N

Weight : 0.8kg

3-Way Finger type, ideal for cylindrical and round workpieces.

Stroke : 10 mm

Gripping force : 125N

Weight : 1.1 kg

Long stroke with reduced height.

Stroke : 32 mm

Gripping force : 85 N

Weight : 1.0kg

A compact type that does not interfere with the course of the robot's movements.

Stroke : 18 mm

Gripping force : 42N

Weight : 0.8kg

3-Way Finger type, ideal for cylindrical and round workpieces.

stroke : 10 mm

Gripping force : 125N

Weight : 1.1 kg

Long stroke with reduced height.

Stroke : 32 mm

Gripping force : 85 N

Weight : 1.0 kg

A compact type that does not interfere with the course of the robot's movements.

Stroke : 18 mm

Gripping force : 42N

Weight : 0.8kg
