CKD Motorless Electric Actuators

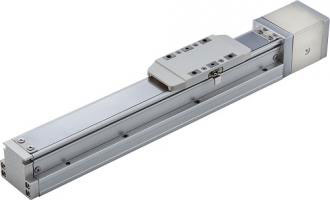

CKD Electric actuator slider

Electric actuator Slider type [EBS-L]

A motorless specification of an electric actuator that allows you to install and control motors from each manufacturer.

strokes:50~1250mm

Maximum portable mass (horizontal): 110kg

Maximum speed: 1600mm/s

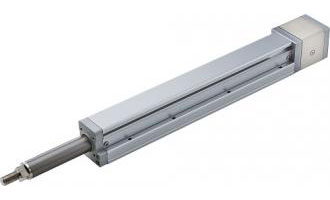

CKD Electric actuator rod

Electric actuator Rod with built-in guide type [Model No. EBR-L]

An outer rail system guide is built in which a body and a guide are integrated. It improves radial performance, is more resistant to offset work, and reduces the need for side-by-side guides.

strokes :50~800mm

Maximum portable mass (horizontal) : 110kg

Maximum speed : 1600mm/s

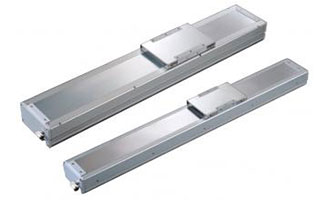

Electric actuator ECS series

Electric actuator [ECS]

The ball screw drive type is designed to help the optimal design with a wide range of sizes, low dust generation model. The size of 12 or more has two linear guides built in, and is especially rigid.

strokes:50~1500mm

Maximum portable mass (horizontal): 150kg

Maximum speed: 2000mm/s

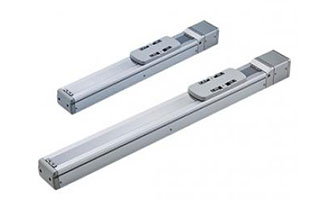

CKD Electric actuator slider EKS-L series

Electric actuator Slider type [EKS-L]

The iron-based outer rail is used for high rigidity. Acceleration and deceleration can be up to 2G, which can help to further accelerate your equipment.

strokes :50~1500mm

Maximum portable mass (horizontal): 118.5kg

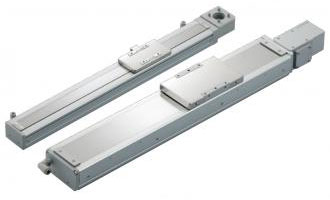

CKD Electric actuator ECV series

Electric actuator [ECV]

The belt-driven type is designed to help the optimal design with a wide range of sizes. It can handle long strokes that cannot be dealt with by ball screw driving. The size of 14 and above has two linear guides built in, and is especially rigid.

strokes :100~3500mm

Maximum portable mass (horizontal) : 85kg

Maximum speed: 2000mm/s

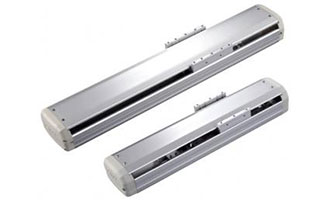

CKD Electric actuator ETS Series

Electric actuator [ETS]

The ball screw drive type helps the optimal design with a wide range of sizes and multi-axis specifications. The size of 12 or more has two linear guides built in, and is especially rigid.

strokes: 50~1500mm

Maximum portable mass (horizontal): 150kg

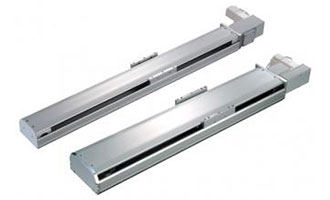

Electric actuator ETV series

Electric actuator [ETV]

The belt-driven type is designed to help the optimal design with a wide range of sizes. It can handle long strokes that cannot be dealt with by ball screw driving. The size of 14 and above has two linear guides built in, and is especially rigid.

strokes :100~3500mm

Maximum portable mass (horizontal) : 85kg

Maximum speed : 2000mm/s
