CKD Electric Actuators

▪ Electric gripper having mounting compatibilities

▪ A variety of workpieces can be handled with multi positioning

▪ spped and gripping force can be manage

▪ The actuator has a built-in motor that allows for arbitrary adjustments of acceleration/deceleration

▪ eliminating the need for a shock absorber.

▪ A table type actuator with short stroke.

▪ A electric gripper with long stroke and thin type which best fits the robot's tip.

▪ gripping position allows you to grip a wide variety of workpieces without changing extended tools.

strokes : 100mm (one-sided 50mm), 140mm (one-sided 70mm), 160 (one-sided 80)

Maximum gripping force : 500N (one side)

Mass : 1.2~2.5kg

▪ With an expanded network compatibility, even the highly in demand EtherNet/IP is supported.

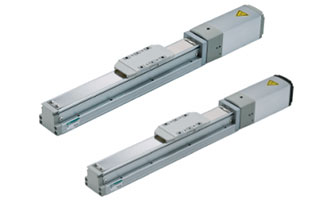

ECG-A : Slider type EBS-G Series, Rod with built-in guide EBR-G Series

ECG-B : 2-Finger Gripper FLSH-G Series, Table type FLCR-G Series, Rotary type FGRC-G Series

▪ It is a rotary type electric actuator which supports operations like multipoint positioning of the table and reverse operation of the held workpiece

▪A batteryless absolute encoder can be installed, position information is retained even during an emergency stop.

▪ At maintenance, To lubricate all parts at once the greasing port is used.

▪[Supported controllers]

EBR-M : ECR

EBR-G : ECG

▪ A batteryless absolute encoder can be installed, position information is retained even during an emergency stop.

▪ At maintenance, To lubricate all parts at once the greasing port is used.

▪ [Supported controllers]

EBS-M: ECR

EBS-G: ECG

▪ It is a controller for stepping motor drives. One controller system contributing to man-hour and inventory reduction.

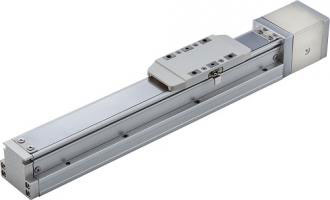

A motorless specification of an electric actuator that allows you to install and control motors from each manufacturer.

strokes:50~1250mm

Maximum portable mass (horizontal): 110kg

Maximum speed: 1600mm/s

An outer rail system guide is built in which a body and a guide are integrated. It improves radial performance, is more resistant to offset work, and reduces the need for side-by-side guides.

strokes :50~800mm

Maximum portable mass (horizontal) : 110kg

Maximum speed : 1600mm/s

The ball screw drive type is designed to help the optimal design with a wide range of sizes, low dust generation model. The size of 12 or more has two linear guides built in, and is especially rigid.

strokes:50~1500mm

Maximum portable mass (horizontal): 150kg

Maximum speed: 2000mm/s

The iron-based outer rail is used for high rigidity. Acceleration and deceleration can be up to 2G, which can help to further accelerate your equipment.

strokes :50~1500mm

Maximum portable mass (horizontal): 118.5kg

The belt-driven type is designed to help the optimal design with a wide range of sizes. It can handle long strokes that cannot be dealt with by ball screw driving. The size of 14 and above has two linear guides built in, and is especially rigid.

strokes :100~3500mm

Maximum portable mass (horizontal) : 85kg

Maximum speed: 2000mm/s

The ball screw drive type helps the optimal design with a wide range of sizes and multi-axis specifications. The size of 12 or more has two linear guides built in, and is especially rigid.

strokes: 50~1500mm

Maximum portable mass (horizontal): 150kg

The belt-driven type is designed to help the optimal design with a wide range of sizes. It can handle long strokes that cannot be dealt with by ball screw driving. The size of 14 and above has two linear guides built in, and is especially rigid.

strokes :100~3500mm

Maximum portable mass (horizontal) : 85kg

Maximum speed : 2000mm/s

▪ Electric actuator compatible with single and multi-axis servo motor drive.

▪ Combine the components freely for compatibility with any transport situation.

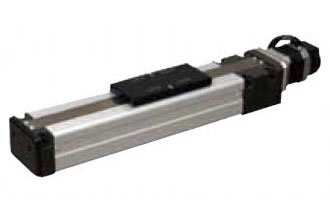

▪ Electric actuator with servo motor drive.

▪ Main body and controller are downsized, enabling compact design.
