KHK stock bevel gears are available in two types, spiral and straight tooth, in gear ratios of 1.5 through 5, and are offered in a large variety of modules, Number of teeth, materials and styles. For bevel gear designed some special features including high speed reduction radios, high efficiency, high rigidity, compact gear assembly, superior performance with regard to high speed, low noise and low vibration. It is also suitable for food machineries due to SUS303’s rust- resistant quality.
Injection Molded Bevel Gears
Module : M 0.5-M 1
Material : Duracon (R) (M90-44)
PRECISION GRADE : JIS 6
Ground Spiral Bevel Gears
Module : M1.5 - M6
Material : SCM415
PRECISION GRADE : JIS 0
Finished Bore Spiral Bevel Gears
Module : M2-M6
Material : SCM415
PRECISION GRADE : JIS 4
Ground Spiral Bevel Gears
Module : M2-M4
Material : SCM415
PRECISION GRADE : JIS 1
High-Ratio Hypoid Gears
Module : M1-M1.5
Material : SCM415
PRECISION GRADE : JIS 3
Plastic Bevel Gears
Module : M1-M3
Material : MC901
PRECISION GRADE : JIS 4 equivalent
Steel Bevel Gears & Pinion Shafts
Module : M1.5-M3
Material : S45C
PRECISION GRADE : JIS 3
Steel Bevel Gears
Module : M1-M8
Material : S45C
PRECISION GRADE : JIS 3

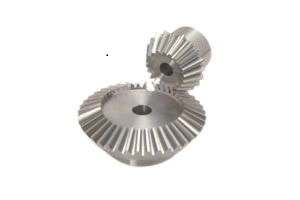

Stainless Steel Bevel Gears
Module : M1.5-M3
Material : SUS303
PRECISION GRADE : JIS 3

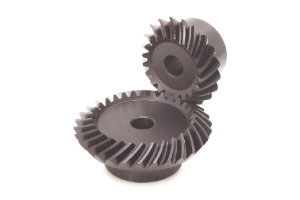

Spiral Bevel Gears
Module : M1 – M5
Material : S45C
PRECISION GRADE : JIS 4
Ground Spiral Bevel Gears
Module : M2-M4
Material : S45C
PRECISION GRADE : JIS 2
