CKD Filter, Regulator & Lubricator Units

▪ Compact modular design in which major boundary dimensions of devices such as filters, regulators, lubricators, etc., are unified.

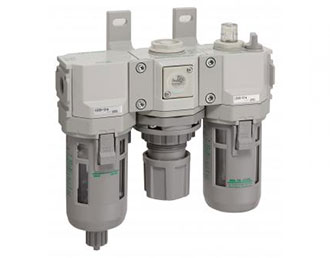

▪ F.R.L. combination of Copper ion prevention treatment specifications.

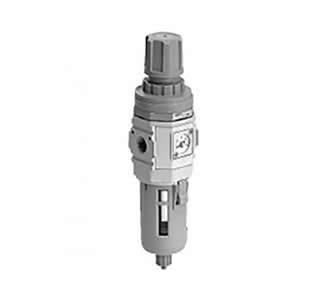

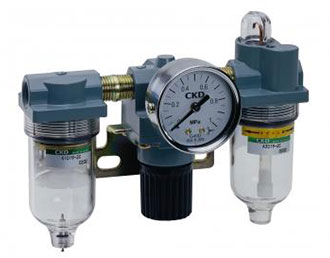

▪ Combination of filter / regulator / lubricator.

▪ Filter / regulator / lubricator set K Series for nipple connection are available in a wide range of models.

▪ For straight type, the single unit alone can be removed without removing the piping during maintenance.

▪ For the L type, IN / OUT ports can be installed from upward / downward directions.

▪ Used for pipe branching.

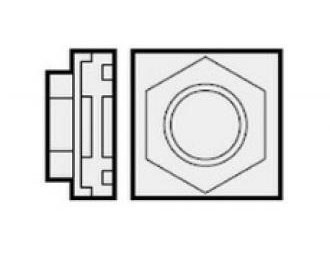

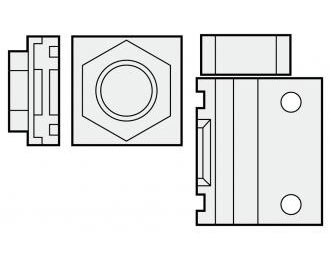

▪ Piping adapter for F.R.L.

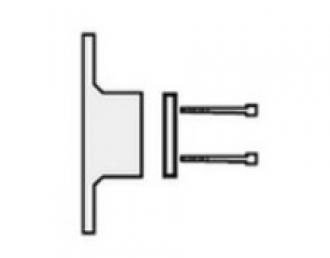

▪ Bracket and joiner for C*0*0 Series.

▪ Compact modular design in which major boundary dimensions of devices such as filters, regulators, lubricators, etc., are unified.

▪ The temperature specifications have been enhanced with all models of the outdoor filters.

▪ All metal external parts. Use of tempered glass.

▪ The adoption of a 360-degree high visibility indicator helps to grasp the maintenance period and reduce the number of element replacement steps.

▪ [Applicable compressor] 15kW to 120 kW

▪ Ideal for circuits that blow directly on food.

▪ Provides bacteria-removed clean air, an odor removal filter has been added

▪ Effectively removes oil and oil mist from pneumatic lines.

▪ New Series using 5μm elements for dust removal

▪ 0.3μm elements for tar removal.

▪ Modular design FRL series Air filter, flame-resistant and resistant to spatter.

▪ F3000 to F8000 Series medium pressure specifications.

▪ The maximum working pressure is 1.6 MPa and proof pressure is 2.4 MPa

▪ M3000 to M8000 Series medium pressure specifications.

▪ The maximum working pressure is 1.6 MPa and proof pressure is 2.4 MPa.

▪ Secondary oil content 0.001 mg/㎥ Appropriate for optical devices, such as optical positioning devices and laser processing systems.

▪ Compact air filter for dust removal.

▪ [Port size] Rc1/8 to 1/4

▪ Nipple connection large bore size filter. Diverse lineup of both series and sizes.

▪ Provides direct exhaust within clean rooms. Revolutionary filter / clean exhaust filter that can clean exhaust air.

▪ Inline clean filter with hollow fiber membrane for filter element provides high performance in all aspects including filtration performance, flow rate, pressure loss, service life and installation space.

▪ Compact, lightweight and space saving inline filter.

▪ Industry : Respiratory / Anesthesia device

▪ High performance main line filter with stainless steel housing for clean environments.

▪ Simple element replacement / replacement interval can be managed by time.

▪ [Applicable compressor] 22 kW to 95 kW

▪ Incorporated energy saving element / differential pressure gauge is equipped as standard.

▪ [Applicable compressor] 95 kW to 1450 kW

▪ A stainless steel vessel is used to eliminate concerns about rust, and to supply perfectly clean high quality air.

▪Incorporated energy saving element / remote control possible.

▪ [Applicable compressor] 95 kW to 1450 kW

▪ A compact filter for the removal of oil.

▪ Ideal for use in the field of compact equipment

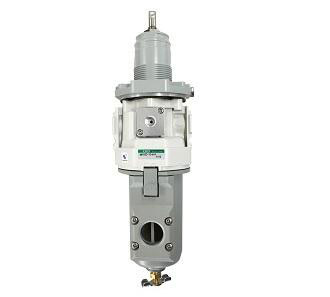

▪ WW3000 Series added as an outdoor filter/regulator.

▪ Adopted cover and gauge plug that are all metal, and tempered glass.

▪ Functional parts use high corrosion resistance materials.

▪ Rain-proof relief port, insect-proof measures.

▪ New Series using integrated filter and regulator

▪ 5μm elements for dust removal, and 0.3μm elements for tar removal.

▪ A flame-resistant integrated filter and regulator that's resistant to spatter.

▪ Filter and regulator are integrated and copper ion prevention treatment is provided.

▪ Ideal for semiconductor manufacturing lines and compact equipment fields, reverse flow function integrated.

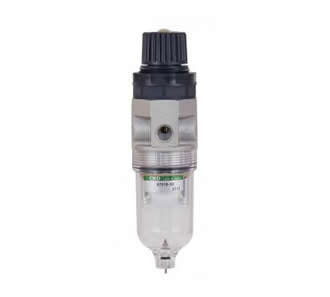

▪ Compact F.R. unit with integrated filter and regulator.

▪ 5 μm element is used for dust removal.

Guaranteed durability in outdoor use. All metal external parts. Use of tempered glass.

A double plastic structure is adopted, so oil dripping can be confirmed from any angle.

A compact lubricator. Supplies fine oil mist.

A large lubricator. Supplying fine oil mist (oil fog).

▪ R3000 series has been added as an outdoor regulator. In addition, temperature specifications have been enhanced for all outdoor-specification regulators.

▪ Cover and gauge plug are all metal. Functional parts use high corrosion resistance materials. Rain-proof relief port, insect-proof measures.

▪ Compact, pressure gauge embedded. The pressure can be adjusted without tools.

▪ A compact type with a large relief flow rate that demonstrates highly precise pressure control and stable flow characteristics with low pressure drop.

▪ An eco-friendly, Significant reduction in air consumption is achieved with the special structure. As it has excellent control performance, high precision and a compact size.

▪ Easy-to-use compact regulator for water. Specially designed knob shape for easy pressure adjustment, with mesh filter supplied as standard.

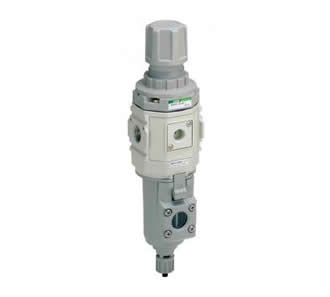

▪ A flame-resistant regulator / reverse regulator that allows pressure adjustment without a tool and is resistant to spatter.

▪ R3000/R4000-W Series medium pressure specifications.

▪The maximum working pressure is 1.6 MPa and proof pressure is 2.4 MPa.

▪ Ideal for applications susceptible to grease, including liquid crystal, semiconductors, foodstuffs, medical use, and electrical potential parts.

▪ Regulator of Copper ion prevention treated.

▪ The pressure can be adjusted without tools.

▪ Compact type FR unit. All metal external parts. Functional parts use high corrosion resistance materials. Rain-proof relief port, insect-proof measures.

▪ Compact, space saving structure and reverse flow function integrated compact regulator.

▪ Compact, lightweight piston regulator with improved operability.

▪ Ideal for circuits that require precise pressure adjustment such as fine workpiece suction or inspection systems.

▪ Dial is provided to enable easy pressure adjustment and remote control. (Remote control type only)

▪ Smooth discharge of secondary side with check valve. No bypass circuit required and easy piping.

▪ Large bore regulator.

▪ Grease-free specification, compact and space saving compact direct acting precision regulator.

▪ Block manifold MNRJB500 Series can act as a mixed manifold with RJB500 / RB500 Series.

▪ A compact regulator with oil-prohibited specifications that can be used in a clean room.

▪ Smooth discharge of secondary side with check valve. No bypass circuit required and easy piping.

▪ If the pressure increases, compressed air is released into the atmosphere to maintain the set pressure.

▪ Compact regulator.

▪ With oil-prohibited specifications and a stainless steel body, it is ideal for controlling the pressure of clean air and N2 used in semiconductor and liquid crystal manufacturing equipment.

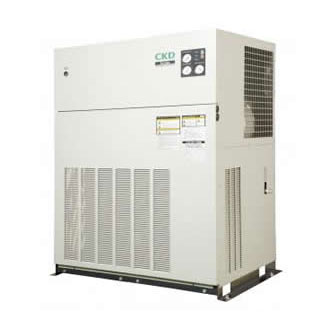

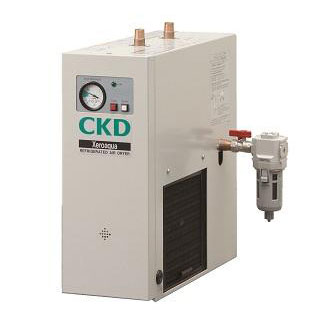

Adopts the new refrigerant R-134a / R-407C / easy maintenance is possible with reliability and safety

New refrigerant R-407C adopted so it can be installed freely in any area. Energy conservation and environmental problems are addressed.

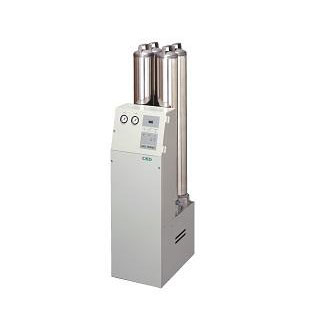

Stable supply of ultra dry air with atmospheric dew point -72°C, does not use heat for regeneration of the desiccant.

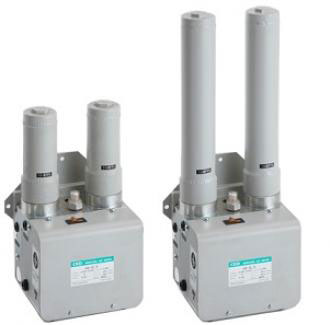

Desiccant is used in this air dryer. (Single use) Power supply unnecessary / can be used even at low pressure.

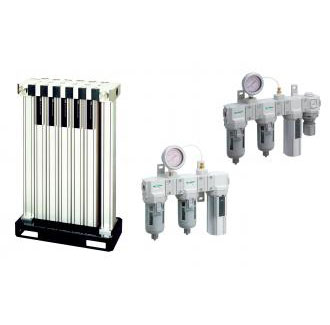

High-tech dryer using high polymer membrane. Freon-free / power supply unnecessary / low dew point equivalent to that of desiccant realized.

This is a heatless dryer of the pressure reduction self-regenerating system which does not use heat for regeneration of the desiccant. Reduces unnecessary purge by dew point monitoring/significantly reduces noise during switching.

▪ Generates high pressure air, double the primary pressure without electric power.

▪ Contributes to energy savings of the plant by utilizing existing compressed air equipment to boost pressure in areas where it is needed.

▪ An air tank can be directly connected to the Air booster ABP2-HP1 Series for a compact installation.

▪ Enables air boosting by using only air pressure in combination with air tanks to raise the primary pressure two-fold (0.99 MPa max.) without the use of electricity.

▪ Air tank directly connected to air booster ABP-12 Series with compact body.

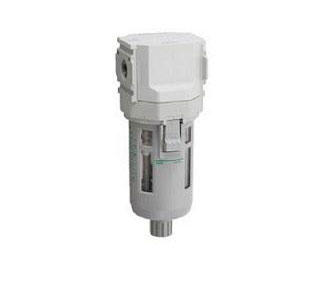

▪ Lightweight compact drain separator. removing 99% or more of the moisture.

▪Ideal for easy drainage from air piping.

▪[Applicable compressor: 0.75 kW to 37 kW]

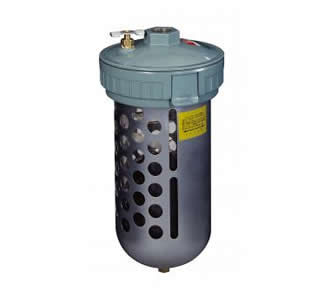

▪ Float drain (NC: no discharge when not pressurized). Ideal for circuits generating a lot of moisture.

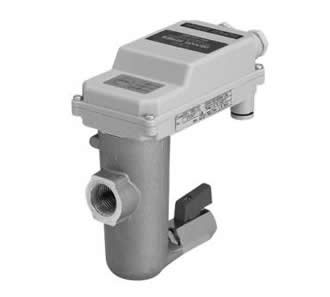

▪ High-reliability level sensor detects the entry of drainage into the pneumatic circuit. Alerts users to drainage with a buzzer and alarm signal.

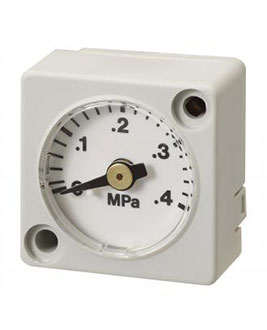

▪ Thin, compact design Ideal for filter regulator, regulator, and pressure switch (P4000-W).

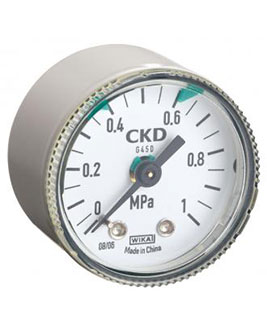

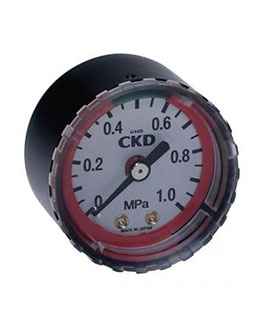

Easier visual inspection control due to green and red zone display.

Easy visual inspection management thanks to the green arrow.

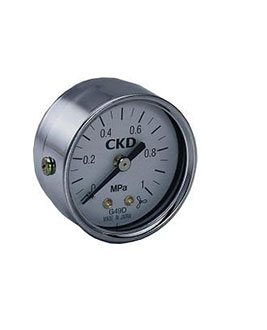

A general purpose pressure gauge with an extensive pressure display range (0.2 MPa to 2.0 MPa). Clean-room specifications are available.

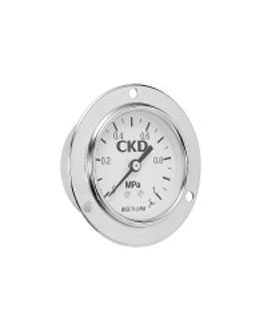

A flush panel mount has been added to the conventional pressure gauge, with M5 used as standard for the port size.

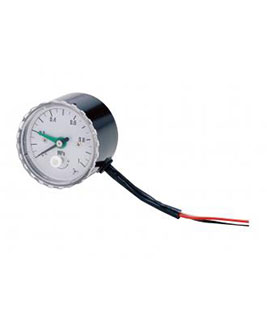

Pressure switch function has been added to the analog pressure gauge. Non-polar connector/activation confirmation lamp is available as an option.

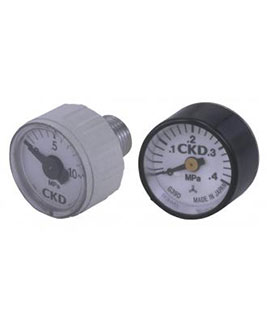

Miniature general-use pressure gauge.

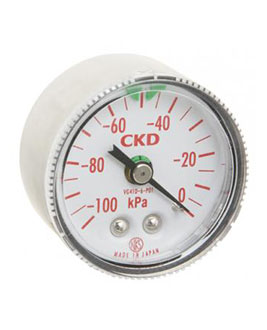

Visual inspection management of vacuum pressure is easier thanks to the green arrow.

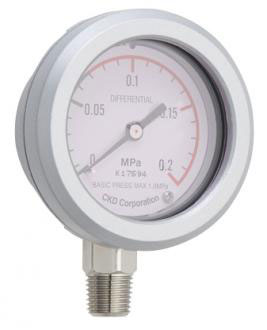

The differential pressure measurement range is 0 to 0.2 MPa ±2.5% FS.

Moisture indicator [Model No. 6119-2C]

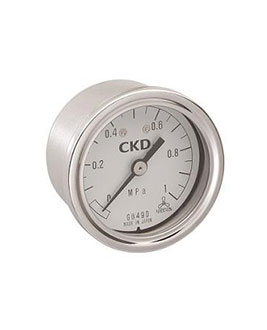

Pressure gauge for outdoor use.

Pressure display range : 0 to 1.0 MPa

▪ Pressure setting range covers 0.1 to 0.6 MPa.

▪ Compatible with module connection to rotary actuator F.R.L.

▪ Wide pressure setting range covers 0.1 to 0.8 MPa.

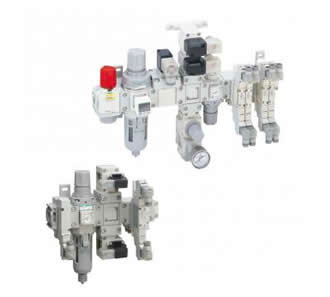

▪ Various air components which are necessary for pneumatic control and actuator drive, from filter / regulators to valves, can be modularized.

▪ Work such as piping is eliminated, enabling the unit to be used immediately.

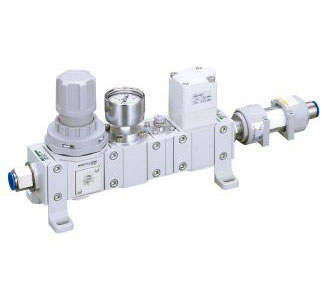

▪Compact and completely oil-prohibited clean air supply unit without piping work.
