CKD Pneumatic Cylinders

The smallest bore size(φ6 to φ16) in general purpose cylinder, light in weight miniature series.

medium bore size (φ20 to φ40) series along with high corrosion resistance and long service life

Cylinders that can be assembled with medium bore size (φ20 to φ40)

Smallest series in standard cylinders. Medium bore size (φ20 to φ100) with Slim body and a wide variety of bore sizes and variations

Environment-friendly cylinder that has eliminated hazardous substances with medium bore size (φ32 to φ100)

High rigid larger bore size (φ125 to φ250) series of standard tie rod cylinders. Lighter in weight, an aluminum cover and tube to halve the product weight.

▪ Wide range of stroke lenghs and switch mounting surface options compared with conventional models .

▪ Suitable from geneal environments to specific applications

▪ Lightweight, space-saving, Detection switch fits into the body with barely any protrusion.

▪ It integrates the cylinder switch into body for shorter total length so that a lateral load is not applied to cylinder before use

▪ It is a compact SSD Series cylinder, equipped with a guide rod and plate. Less struggles with design and assembly.

▪ This cylinder is a miniature single acting cylinder that returns with spring when pulled.

▪ Its inner diameter is φ4 to φ10, can be directly mounted from 4 directions.

▪ Can be used In applications like ejection of workpiece or shutter of parts feeder

▪ Type with high precision guide(MSDG) also available, Small bore size from φ6 to φ16.

▪ This is a compact cylinder, its end is equipped with a suction pad so that piping could not move when cylinder activates.

▪ Used in pick and place applications

▪ Its rectangular space saving cylinder that reduces axial dimensions by 50%. Its bore section is oval and rotation-stop function is provided

▪ The stop cylinders can be used in applications where lateral load is applied to piston rod.

▪Generally ideal for stop function of conveyor.

The Rodless cylinder SRL3 series runs from φ12 to φ100. It is resitant to high load and duarable.

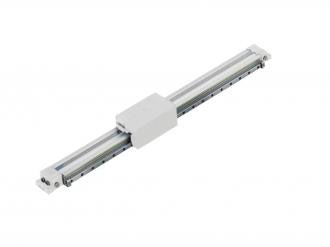

High precision rodless cylinder runs from φ12 to φ25 with integrated high precision 1-axis linear guide.

High precision rodless cylinder runs from φ25 to φ63 with integrated high precision 2-axis linear guide.

compact brake unit is integrated into rodless cylinder (SRL3) series. It runs from φ12 to φ63

Comes with newly adopted lubrication mechanism, which improves service life and operational stability.

Comes with newly adopted lubrication mechanism, which improves service life and operational stability with high precision guide boasting.

shuttle mover employs a rodless cylinder that combines air with magnetic force. Three-dimensional transport which was not possible in the past has been realized.

High speed (2000 mm/s) and energy absorbing cylinder can be used to mold ejection of resins, etc

High speed (3000 mm/s) and energy absorbing cylinder can be used to mold ejection of resins, etc

▪ small cylinder with a length measuring sensor enables work on workpieces detection or inspection at the same time

▪ High freedom in mounting and abundant variations, with attention to ease of use and selection.

▪ Light weight, Resource saving and metal bearing material improves the lateral load proof characterstics, realizing stable operation

▪ The Optimized body structure for short stroke and long stroke with guides on both sides.

▪Comes with Various variations to adapt to various applications and environments such as lifter, pusher, etc.

▪ Designed to improve non rotating accuracy and double thrust with 6 bore sizes from φ6 to φ32 along with varoius variations

▪ Designed and Ideal for transporting with less shock and noise while called on for high thurst.

▪ Comes with twin rod and double rod structure

▪ Locking mechanism which locks and unlocks linearly using air.

▪ A brake integrated with medium bore size (φ40 to φ100 mm)(SCA2)and large bore size (φ125 to φ180 mm)(SCS2)

▪ A brake unit integrated with medium bore size (φ16 to φ40) standard cylinder series

▪ A brake unit integrated with medium ore size (φ20 to φ40 mm) (CMA2 / CMK2) Series

▪ Robust (SCG) cylinder with brake series where brake mounted and fixed with tie rod

▪ Switch integrated into body for shorter length, compact cylinder with position locking.

▪ It can stop at any position of stroke length

▪ FCD series flat cylinders equipped with position locking, stops at any position of the stroke length.

▪ SCA2 series medium bore size cylinders (φ40 to φ100) are equipped with position locking, Stops at any position of stroke length.

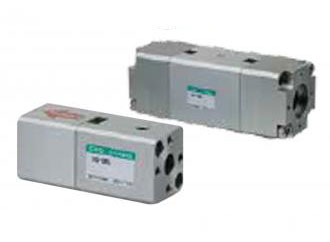

▪ To enable movable rods to stop instantaneously 10 types of discrete brake units of brake cylinders(φ40 to φ180 ) are available

▪ To lock a workpiece after moving it to a specified position or for emergancy stop these types of locks can be used

▪ To lock a workpiece after moving it to a specified position

▪ hold it during stop and prevent it from falling off

▪ Single guide type rotary clamp cylinder can be used for combining rotational and linear motions.

▪ Shorter in length than traditional

▪ A light weight clamp cylinder that contributes to reduction in weight of welding jigs, etc.

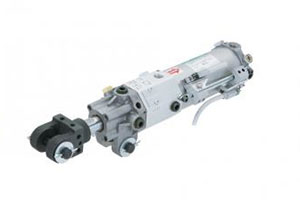

▪ Specially designed for Pin type clamp and position locking mechanism can be selected.

▪ Clamp cylinder in which rod eyes and clamp bracket can be selected in clevis mounting.

▪ The swash plate mechanism locks rod when air supply stopped to prevent load from falling.

▪ It act as one way lock which allows rod to be moved in opposite direction

▪ Specially designed for clamping small workpieces such as electronic components.
