CKD Check valves, shuttle valves, quick exhaust valves

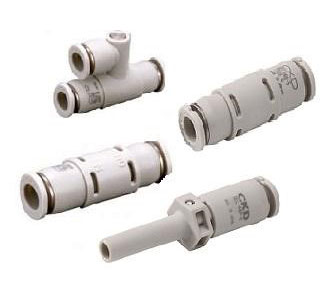

▪ The in-line type has built-in φ4 and φ6 push-in fittings with plug types

▪ atmospheric release and exhaust port fittings available.

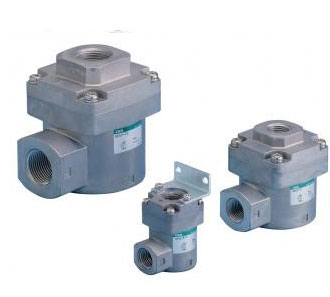

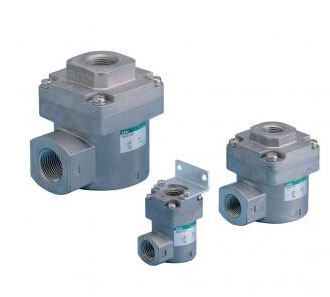

▪ Quick exhaust valve providing outstanding exhaust with large flow rate design

▪ a great variety of bore sizes / options.

▪ A shuttle valve that can be used when switching between manual and automatic operation

▪ with abundant bore sizes and options.

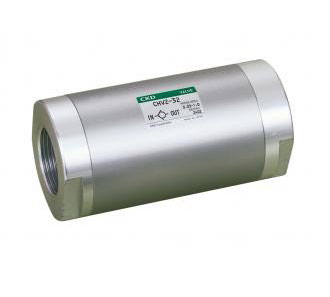

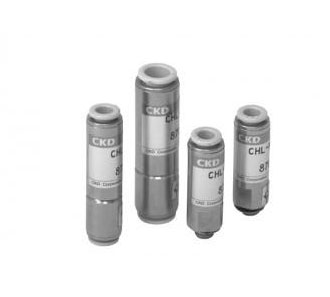

▪ It can completely prevent reverse flow of fluid such as compressed air.

▪ A great variety of bore sizes / options.

▪ Compact valve ideal for cylinder position locking and braking.

▪ Compact and lightweight with a wide variety of bore size variations.

▪ Compact and space saving line type for vacuum retention and low pressure use.

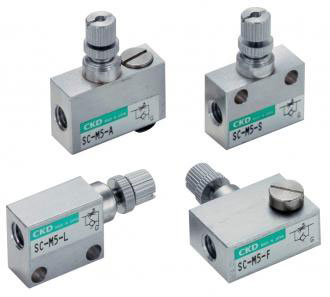

▪ Cylinder speed can be quantified and flow rate can be controlled.

▪ Rotary needle with linear flow and push method adopted to fix needle and its position.

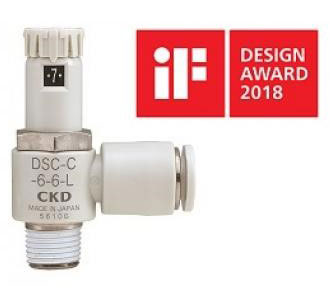

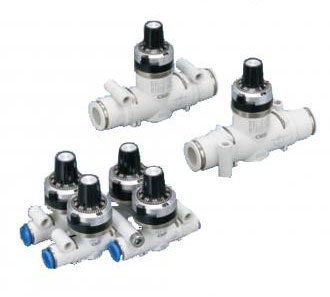

▪ Dial is for displaying rotation speed numerically so that anyone can control cylinder speed and flow rates

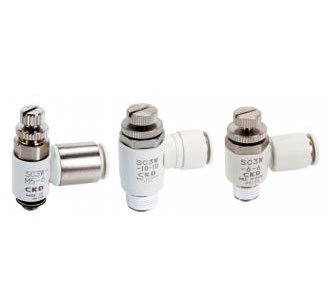

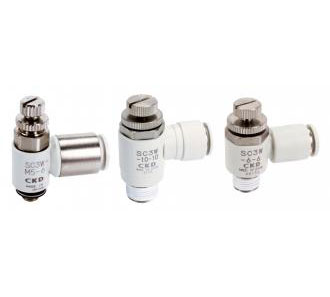

▪ Elbow speed control valve with push-in fitting. Piping screw is coated with sealant.

▪ Inline type useful for remote or central actuator control.

▪ The SCL2 Series is an inline speed controller useful for remote or central actuator control.

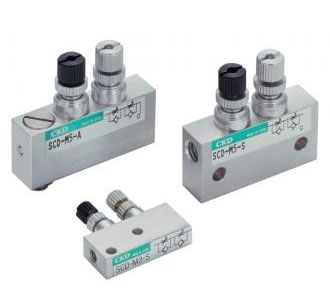

▪ The SCD2 Series is an integrated meter-in/meter-out speed controller that controls both air intake and exhaust flow.

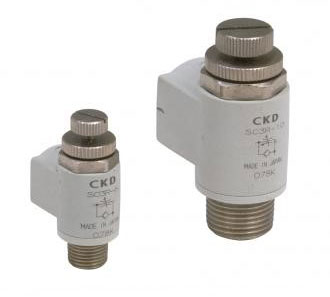

▪ Direct port connection is possible with elbow speed control valve. Piping screw is coated with sealant.

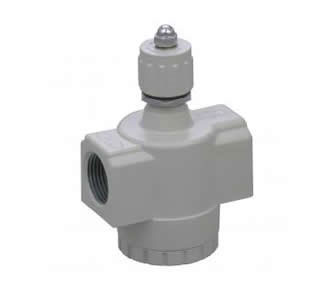

▪ Inline speed controller large bore size.

▪ Compact, lightweight and thin body. Speed control valve for air supply and exhaust.

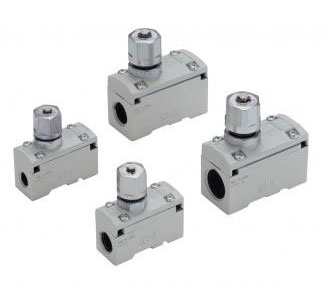

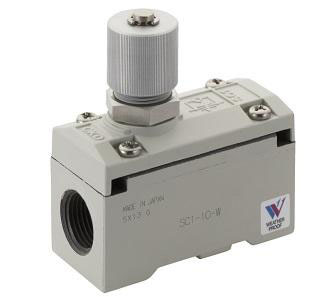

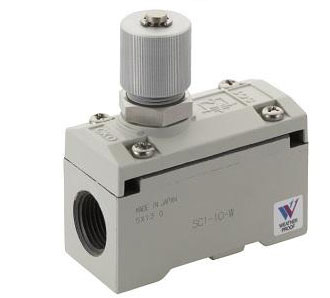

▪ Inline speed controller medium bore size.

▪ This speed controller is compact and lightweight enabling space-saving piping.

▪ Low speed and fine speed are available.

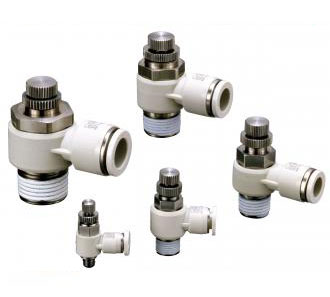

▪ Use of highly anti-corrosive stainless steel equivalent.Standard ozone-resistant materials.

▪ Inline speed controller medium bore size.

Industry's smallest class residual pressure exhaust valve with the safety standard ISO13849-1 certification.

Serves as a solenoid shut-off valve for pneumatic systems. Signal output of the valve‘s open / close state is possible by detecting the main valve spool position with the limit switch. Two modules can be connected to configure a double breaker circuit.

Ideal for ensuring safety when starting and stopping.

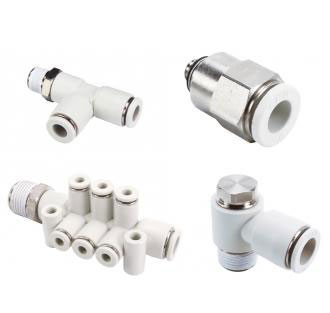

▪ Push-in fitting for pneumatic piping.

▪ Compact size for space saving.

▪ Work environment and device-friendly flame-resistant white body.

▪ Push-in fitting that uses flame-resistant resin and stainless steel.

▪ Compact push-in fitting type, with a wide variety of variations.

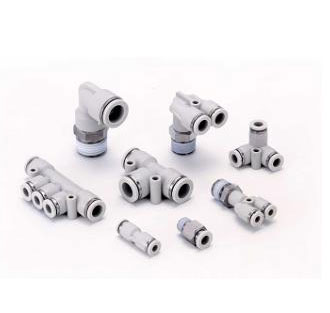

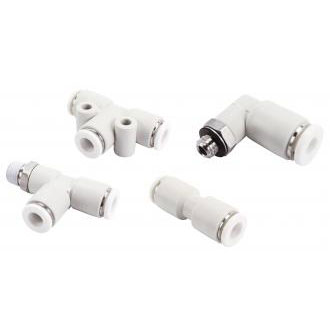

▪ Push-in fittings that use stainless steel (SUS303 or equivalent) for the metal body.

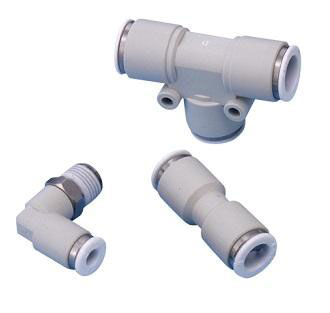

▪ Miniature with a wide variety of variations.

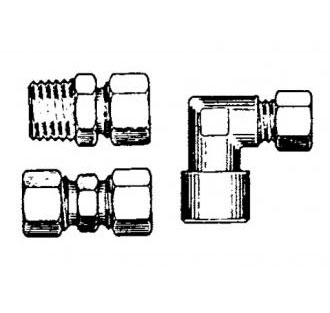

▪ Stable and secure piping enabled by double chuck, can also be used in copper pipes.

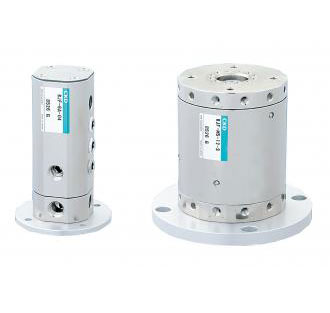

▪ It has a built-in bearing. Its ample lineup includes 4 / 6 / 8 / 12 / 16 circuits. For 12 and 16 circuits, space saving type is available and port sizes Rc1/8 as well as M5 are available.

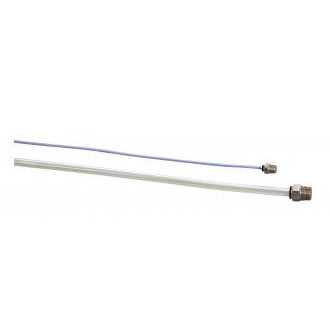

▪ The fiber tube is an extremely thin, flexible air tube comparable to the lead wire.

▪ It enables easy piping in narrow spaces or short distances.

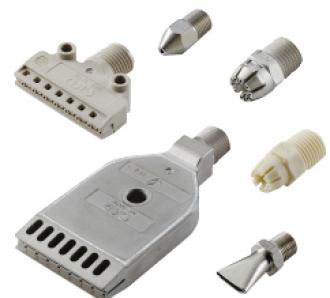

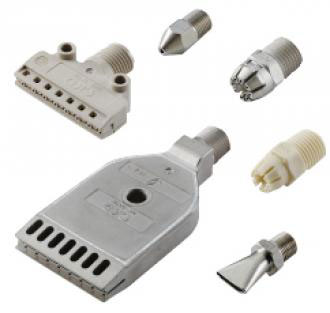

Nozzles of various shapes including energy saving type nozzles that enhance the pneumatic air source.

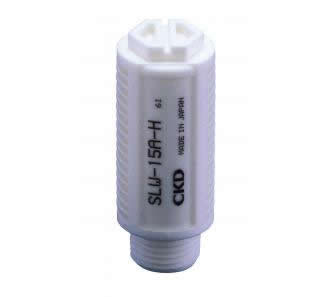

▪ Device that reduces exhaust noise caused by discharged air.

▪Compact with a noise reduction effect of 20 dB [A] and over.

▪ Device that reduces exhaust noise caused by discharged air.

▪Compact with a noise reduction effect of 20 dB [A] and over.

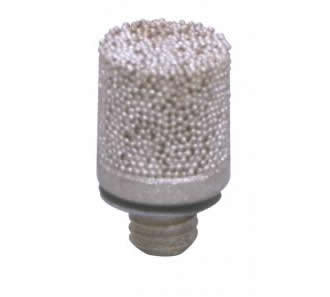

▪ Peripheral device for compact pneumatic components.

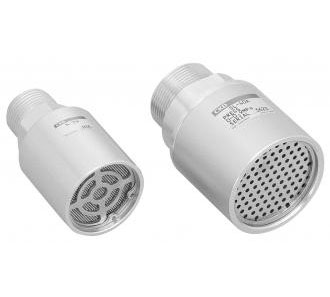

▪ Silencer with metallic body that reduces exhaust noise generated by discharged air.

▪ Device that reduces exhaust noise caused by discharged air.

▪Compact with a noise reduction effect of 23 dB [A] and over.

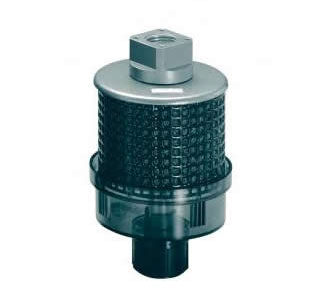

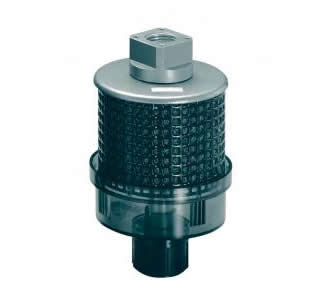

▪ Exhaust cleaner effectively removes dust and oil mist in compressed air exhausted from pneumatic components

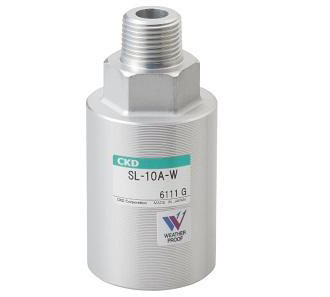

▪ Silencer with metallic body that reduces exhaust noise generated by discharged air.
