THK Caged Ball LM Guide

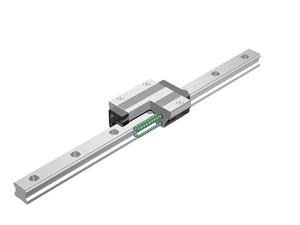

LM guide SHS series

Global Standard Size Model SHS

THK Global Standard Size Model SHS in Caged Ball Linear Guideways is designed to allow rated loads in four directions to LM Block hence LM Guide is to be used in all orientations. The important features include 4-way equal load, Self-adjustment capability, Global standard Size, Low centre of gravity with high rigidity and long term maintenance free operations.

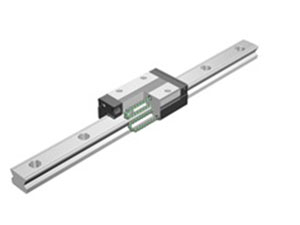

THK LM guide SSR series

Radial Type Model SSR

THK Radial Type Model SSR is compactly designed by utilising a Ball cage that eliminates friction between balls as a result of increased grease retention. Some important features include low noise, high speed, long-term maintenance-free operation, compact design, Radial Type, Superb Planar Running Accuracy, Self-Adjustment Abilities and Stainless Steel Type also available as standard.

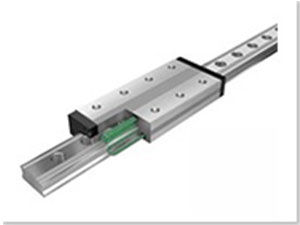

THK lm guide SVR series

Ultra-heavy Load type for Machine Tools SVR

THK Model SVR of the caged ball LM Guide series has high rigidity and load carrying capacity, which maintains Linear Guideways Performance due to a few important features such as Super Heavy Load, increased damping, increased dust-proof performance, High rigidity, and a wide array of options to respond to diversified service environments.

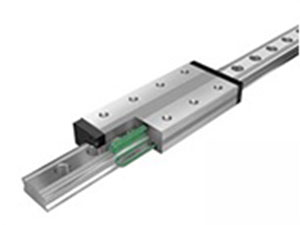

THK LM guide SVS series

Ultra-heavy Load type for Machine Tools SVS

THK Model SVS of the caged ball LM Guide series has high rigidity and load carrying capacity, which maintains Linear Guideways Performance due to a few important features such as Super Heavy Load, increased damping, increased dust-proof performance, High rigidity, and a wide array of options to respond to diversified service environments.

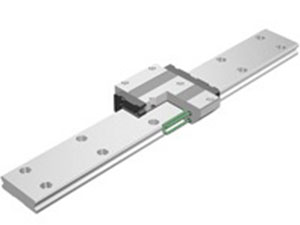

THK LM guide SHW series

Wide Rail Model SHW

THK Wide Rail Model SHW uses ball cages to achieve low noise, high speed, and long-term maintenance-free operation. The Model SHW is achieved high rigidity due to its features such as a wide and low centre of gravity, 4-way equal load, self-adjustment capability and low dust generation.

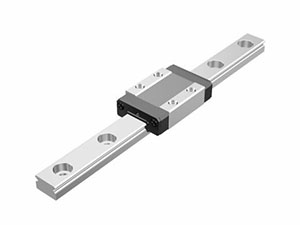

THK Lm guide SRS series

Miniature Type Model SRS

THK Caged Ball LM Guideways Model SRS has a compact body with two raceways that allow it to receive loads from all directions. Ball cages are used to reduce friction between the balls in order to achieve high speed, low noise, acceptable running sound, low dust generation, long service life, and long-term maintenance-free operation.

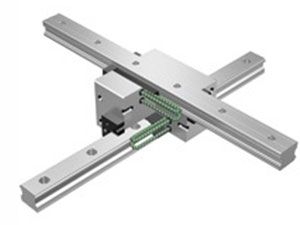

THK LM guide SCR series

Cross LM Guide SCR

THK Cross LM Guide Model SCR is an integral type that uses two LM rails in combination and an orthogonal LM system can be achieved with model SCR. Here conventionally required saddle is no longer necessary due to this high rigidity possible and 4-way equal load for enabling the LM guide to be used in all orientations. The X-Y motion structure can be simplified.

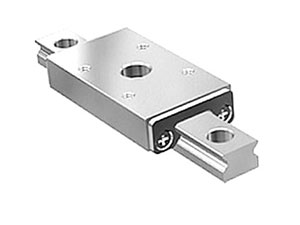

THK LM guide EPF series

Finite Stroke Guide EPF

THK Finite Stroke Model EPF is structured in a way that balls are held in cages with spherical ball holders as a result of smooth motion, get high rigidity, miniature type due to its mounting method, 4-way equal load, no metal contact between cage and balls as a result of providing excellent noise characteristics, low dust emission and long product life.
