CKD Fluid Control Components

▪ Direct acting solenoid valve for water. Using highly corrosion-resistant material

▪ Industry: Sterilizing equipment, dental equipment, Endoscope related device

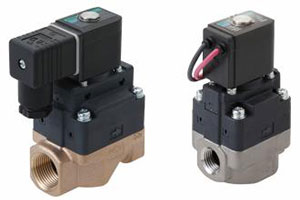

▪ Compact pilot operated solenoid valve for water.Using highly corrosion-resistant material

▪ Industry: Sterilizing equipment, dental equipment, Endoscope related device

▪ Compact pilot operated solenoid valve for compressed air control. Ideal for air blowing applications.

▪ Industries:

Dental equipment, Inspection, Jig related

▪ Direct acting solenoid valve for compressed air. With an aluminum body, Dental equipment

▪ Direct acting solenoid valve for hot water. Heat resistant coils are used, allowing use in hot water up to 90°C.

▪ Direct acting solenoid valve for oil. Viscous fluid compatible mechanism, compatible with oil with viscosity of 50 mm^2/S or less.

▪ Pilot kick solenoid valve for compressed air. Actuates even at differential pressure 0, with Rc1/2 to 50 flange. available.

▪ Pilot kick solenoid valve for water. Actuates even at differential pressure 0, with Rc1/2 to 50 flange. available.

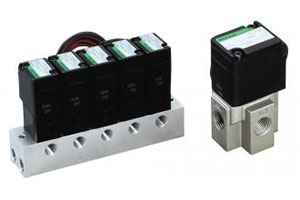

Highly durable direct acting solenoid valve that can be used from dry air at atmospheric dew point of -60°C to inert gases such as nitrogen gas.

Highly durable direct acting solenoid valve that can be used from dry air at atmospheric dew point of -60°C to inert gases such as nitrogen gas.

Highly durable diaphragm solenoid valve that can be used from dry air at atmospheric dew point of -60°C to inert gases such as nitrogen gas

▪ Compact direct acting solenoid valve that is compatible with a wide variety of fluids and ideal for equipment installation.

▪ Direct acting solenoid valve compatible with various fluids.

▪ Compatible with various applications through a wide variety of compatible materials, orifice sizes and coil options.

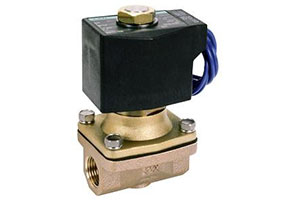

▪ Pilot kick 2-port diaphragm drive solenoid valve compatible with a variety of fluids.

▪ It can be used with differential pressure 0 and supports various applications through material selection.

▪ Pilot kick 2-port piston drive solenoid valve compatible with a variety of fluids.

▪ Can be used from differential pressure 0 and steam specification can be selected

▪ Pilot operated 2-port diaphragm drive solenoid valve compatible with a variety of fluids.

▪ Compatible with various applications through material selection.

▪ Pilot operated 2-port piston drive solenoid valve.

▪ Compatible with various applications through material selection.

▪ Steam specification can be selected.

▪ Pilot operated piston drive solenoid valve that can be used for steam, water and oil.

▪ Ideal for use as a construction pipe with 100/200 VAC shared.

▪ Compact direct acting solenoid valve that can be used for compressed air, water, dry air and low vacuum.

▪A compact air operated valve comes poer sizes of Rc 1/4 and 3/8.

▪Can be used for wide variety of fluids by changing corresponding body and sealing material.

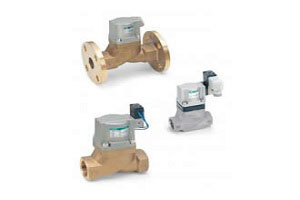

▪ Air operated valve of a cylinder drive type that’s available in a wide range of port sizes from Rc1/4 to 80.

▪It supports water, air, steam and low vacuum, and solenoid valve mounted type is also available.

▪ It is a clean-room compact air operated valve that separates the flow path part and sliding part.

▪ It is a clean-room air operated valve that supports port sizes of Rc3/8 to 1 and separates the flow path part and drive part.

▪ It supports a variety of fluids with the selected body diaphragm material.

▪ The valve which can be used for watering urban greenery as well as liquid fertilizer and nutrient solutions for agriculture.

▪ Comes with a union connection that allows easy piping without tools.

▪ Resin solenoid valve which can be used for watering urban greenery as well as liquid fertilizer and nutrient solutions for agriculture.

▪ Solenoid valve for automatic watering using a metal body.

▪ Usable for various applications ranging from protected horticulture to golf courses and facility greening.

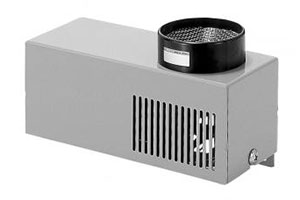

▪ Rain sensor that can be used with watering controller.

▪ Detects rainfall of 6 mm or more and cancels watering.

▪ Also available with solenoid valve.

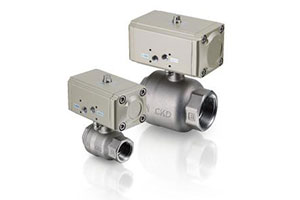

▪An air operated ball valve, can control large flow rates with low pressure loss.

▪A Miniature motorized ball valve is used for port sizes Rc3/8 to 3/4.

▪Compact, lightweight, and ideal for mounting on equipment.

▪ Steam motorized ball valve which can control large flow rates with low pressure loss.

▪ A motorized proportional control ball valve supports various processes such as temprature control.

▪ Opening adjustment can be executed in propotion with input signal.

▪ An air operated 2 port valve for steam which can control large flow rates with low pressure loss and supports fluid temprature up to 164°C.

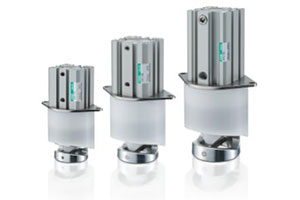

▪ A pinch valve that used in pneumatic technology. Specially designed for environments requiring sterilization.

▪ Thin pilot operated 2-port solenoid valve is used in oxygen concentrator

▪ Oxygen concentrator, Dental equipment, Respiratory / Anesthesia device

▪ 3QE / Z Series for positive pressure only

▪ 3QB Series for positive and negative pressure,

▪ 3QR Series with large flow rate for positive and negative pressure. [Cylinder bore size: φ6 to φ20]

▪ Contributes to the construction of systems for low pressure/vacuum.[Cylinder bore size: φ16 to φ40]

▪ Compact direct acting solenoid valve that is compatible with a wide variety of fluids and ideal for equipment installation.

▪ Compact pilot operated solenoid valve for compressed air control. Ideal for air blowing applications

▪ Resin and rubber adopted in wetted parts material, and metal eliminated.

▪ Metal-free small 2, 3-port solenoid valve for chemical liquid compliant with European standards.

▪ Rocker valve with indicator. Control valve ideal for high tact of medical/analysis equipment.

▪ Thin and compact metal-free 2-port solenoid valve. Easy maintenance realized by adopting one touch attachment structure.

▪ Tube connection type. Supports water, pure water, chemical liquid. Fluid temperature up to 90°C supported.

▪ Both sealant and body material are chemical liquid resistant PTFE.

▪ Excellent in silence. Fluid accumulation is minimized. Features a longer service life.

▪ Metal-free 2, 3-port valve. Wide range of choices. Sealant is fluoro rubber.

▪ Solenoid valve for a wide range of chemical liquids. Has the largest orifice in the series.

▪ Compact lever 2, 3-port solenoid valve. The connection is with barbed fitting. Sealant material is selectable.

▪ Ultra-small size solenoid valve. Unique stainless steel pipe connection. Mount with the coil down.

▪ High corrosion-resistant stainless steel body. Compatible with pure water. Excellent in silence.

▪ Small 2, 3-port valve for chemical liquid with a width of 10 mm. Diaphragm.

▪ Supports pure water, normal saline, reagent, washing solution and waste liquid.

▪ Compact, lightweight and space saving inline filter.

▪ A compact regulator with oil-prohibited specifications that can be used in a clean room.

▪ The nozzle has been compactly integrated into the check valve.

▪ We have OUT side connections lined up including nozzles, and male/female threads for various applications.

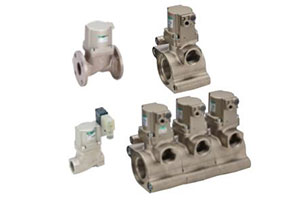

▪ A wide range of port sizes and pressure specifications (up to 7.0 MPa) are available, and optimization of coolant control is realized with various variations such as with solenoid valve and manifold.

▪ Port size from Rc3/8 to 1 and specification from medium pressure (3.5 MPa) to high pressure (7.0 MPa) available.

▪ [Maximum working pressure: 0.3 MPa]

▪ [Port size : Rc3/4, 1]

▪ Ideal check valve for coolant with flow path structure resistant to foreign matter.

▪ Port sizes Rc3/8, 1/2, and 3/4 are available.

▪ Degree of protection equivalent to IP65

▪ ideal for coolant control of machine tools, low pressure switches

• ▪ Large port size dust collector valve
• ▪ ideal for removing dust from bag filter type dust collectors.

• ▪ Large port size dust collector valve ideal for removing dust from bag filter type dust collectors
• ▪ which can be used in explosion-proof areas with d2G4 pressure.

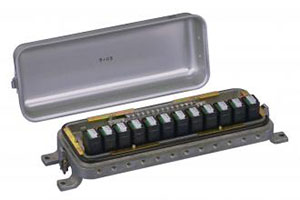

▪ Controller for controlling multiple dust collector valves used in dust collectors.

▪ 2-port solenoid valve for operation of air operated dust collection valve PD Series.

▪ Compliant with pressure and explosion proof structure d2G4 and can be used in explosion-proof areas.

▪ Compliant with pressure and explosion proof structure d2G2 and can be used in explosion-proof areas. Class 180 (H) heat resistant coil is installed.

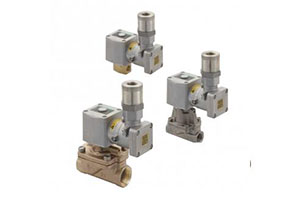

▪ Certified as ExdIIBT4 by international standard (IEC) guidelines and can be used in explosion-proof areas.

▪ Certified as ExdIIBT2 by international standard (IEC) guidelines and can be used in explosion-proof areas. Class 180 (H) heat resistant coil is installed and can be used with steam.

▪ A hydrogen gas compatible option is added to the working fluid to guarantee use with hydrogen gas.

▪ A hydrogen gas compatible option is added to the working fluid to guarantee use with hydrogen gas.

▪ A hydrogen gas compatible option is added to the working fluid to guarantee use with hydrogen gas.

▪ A hydrogen gas compatible option is added to the working fluid to guarantee use with hydrogen gas.

▪ A hydrogen gas compatible option is added to the working fluid to guarantee use with hydrogen gas.

▪ Combination of cutoff valve supporting intermediate pressure gas (up to 50 kPa).

▪ Two solenoid valves are integrated to support dual cutoff and ensure safety.

▪ Combination cutoff valve with low pressure (5 kPa) specifications.

▪ Governor is also compactly integrated to ensure safety with a dual cutoff.

▪ Combination cutoff unit supporting medium pressure (0.3 MPa) gas.

▪ Two solenoid valves are unitized to support dual cutoff and ensure safety.

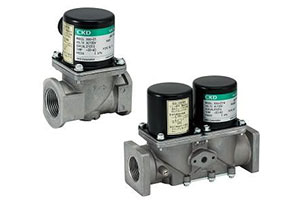

▪ Quick open type cutoff valve compatible with medium pressure (0.3 MPa) gas.

▪ Slow open type cutoff valve compatible with medium pressure (0.3 MPa) gas.

▪ Governor that realizes a large flow rate, compact and compatible with medium pressure (0.3 MPa) gas.

▪ Gas cutoff valve that opens and closes with built-in hydraulic pump.

▪ It can be used at intermediate pressure to medium pressure (0.3 MPa) with various connection sizes (supports Rp1 1/2 to 200A flange).

▪ Large flow rate compatible gas cutoff valve that opens and closes with built-in hydraulic pump. (Port size 50A, 80A)

▪ Shut-off valve with increased fire resistant safety specifications regarding the time and high temperature resistance possible until firefighting begins in the case of a fire.

▪ Port size 25A flange compatible with medium pressure (0.3 MPa) gas.
